We will introduce the 'Clear Data Table' activity.

Tabel of contents

1. Program name of the activity

RCA.Activities.Core.ClearDataTable

2. Description

For Studio version up to 2.0.2.0:

Quick Access: Toolbox > Data Table > Clear Data Table

For Studio version 2.0.3.0 and later:

Quick Access: Toolbox > Core > Data Table > Clear Data Table

Clears the data within the specified data table.

*Tested akaBot Studio versions: 2.0.5.1, 2.1.0.0
*Please note that wording and labels may vary slightly depending on the version.

3. Properties

4. How to use

Let’s try clearing the data from a data table created using Build Data Table.

As shown in the image below, place Build Data Table, Output Data Table and Write Line activities, and configure the necessary variables and other settings for each.

*The variables used are the same as those used on the Output Data Table page rateTable and result.

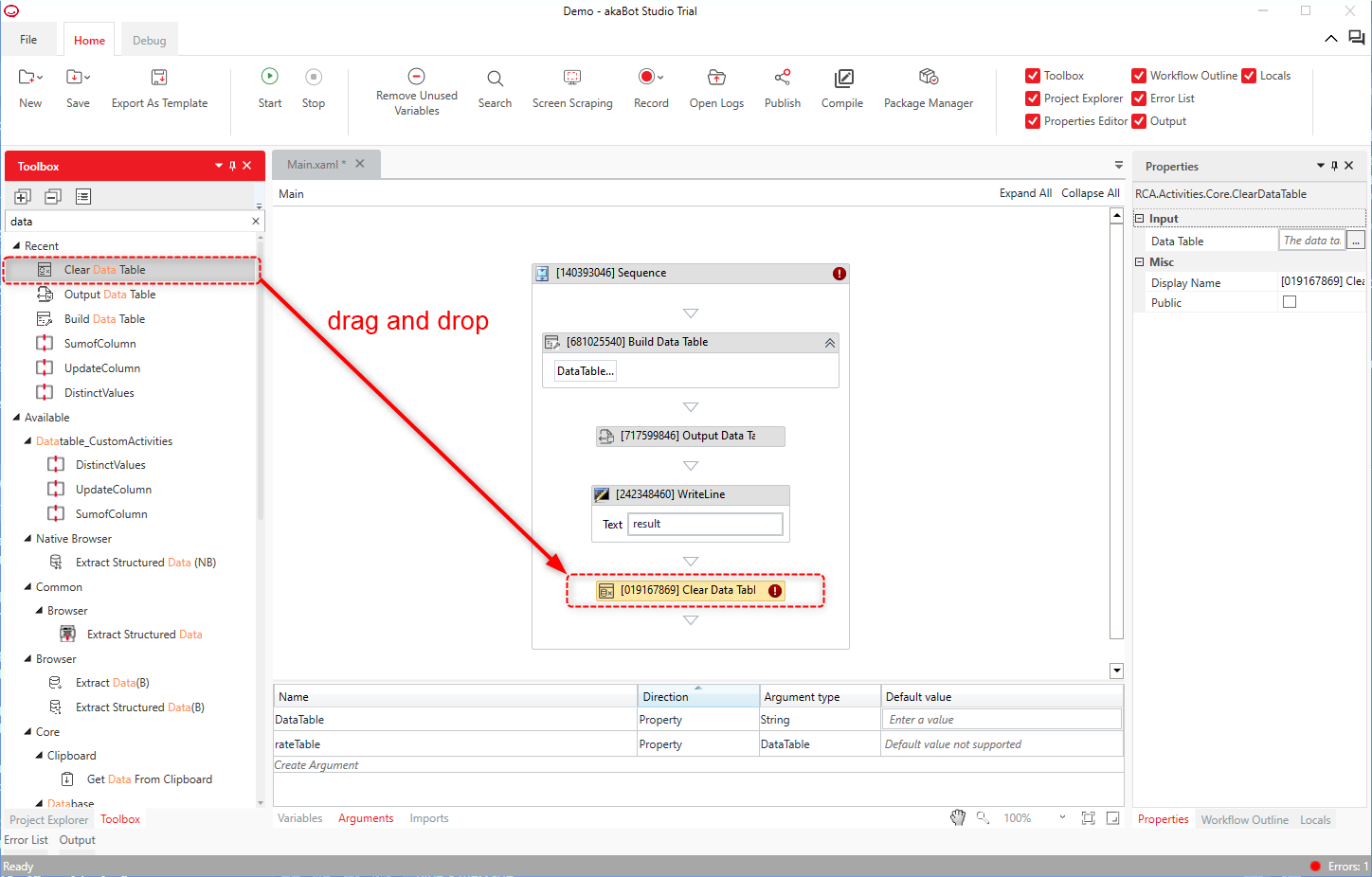

Next, drag and drop "Clear Data Table" from "Core" > "Data Table", and place it in the workflow.

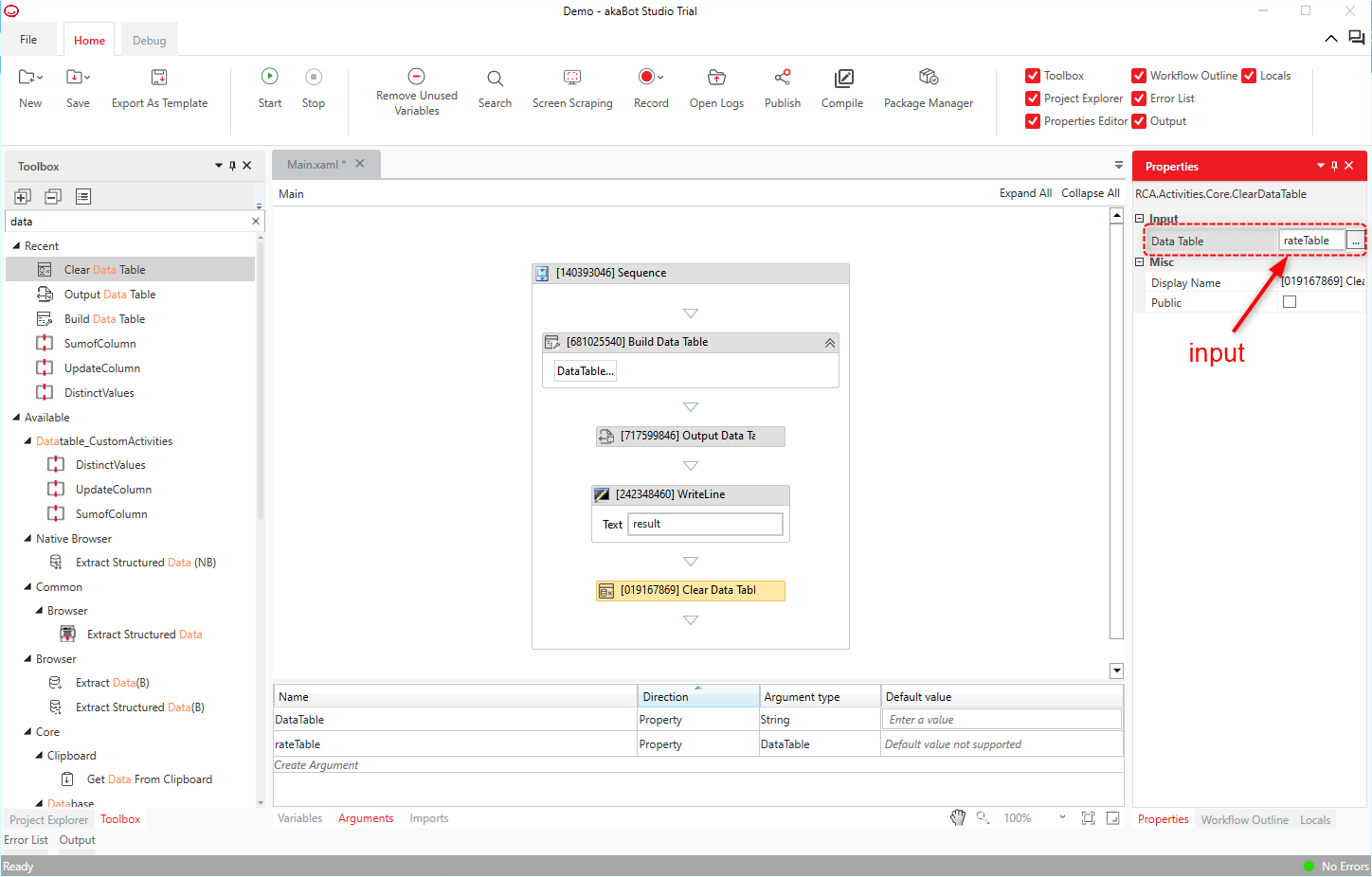

In the "DataTable" property, enter the DataTable-type variable (in this example, "rateTable").

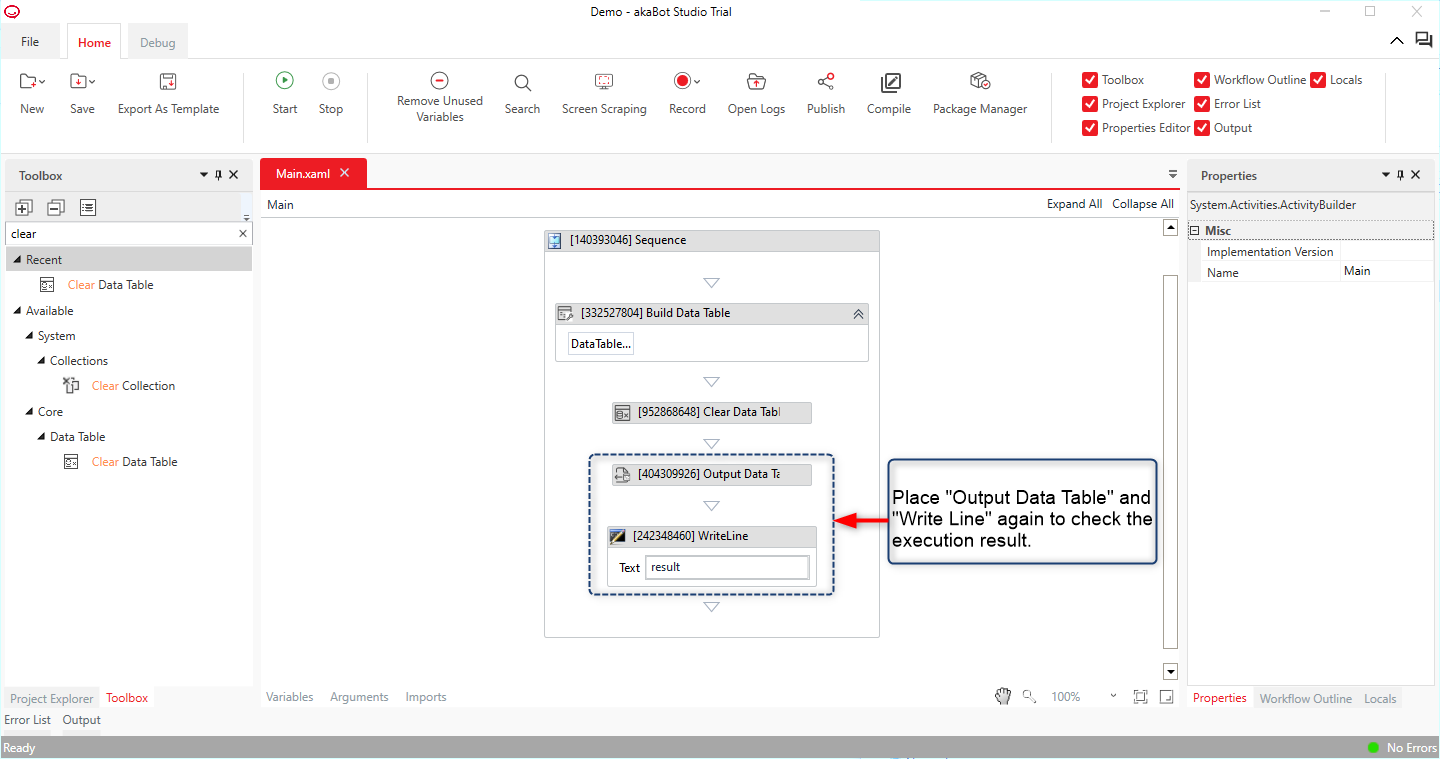

Place "Output Data Table" and "Write Line" again to check the execution result.

*The variables used are the same as before: "rateTable" and "result."

Click "Home > Start" or press the F5 key to execute the robot, then open the output panel.

After the data from the data table is written, confirm that the data within the data table has been cleared, and only the columns have been written.
