Move Directory Activity

Created by akaBot Support, Modified on Wed, 26 Mar at 10:05 AM by akaBot Support

※ Note: For akaBot Studio versions from 2.0.3.0 onwards, the activity name was changed from "Move Directory" to "Move Folder". Some documentation may still refer to the previous name.

Activity Program Name
Description
Properties
How to Use
Sample

1. Activity Program Name

RCA.Activities.Core.MoveDirectory

2. Description

Quick Access: "Toolbox" > "Core" > "Move Folder"

This activity moves a directory (folder) along with all its contents to a specified location.

※ Verified akaBot Studio version: 2.0.1.6

※ Note: Terminology or wording may vary slightly depending on the version.

3. Properties

Property Group	Property Name	Input Field	Description
Misc	Public	Checklist	The variables and arguments within the activity are written to the log file and pushed to the Center. (See: "Property Item: Public.")
Misc	Display Name	Input value (String)	Reflected in the Designer Panel as the activity's name.
Directory	Path	Input value (String)	Move source directory path
Directory	Move Destination Path	Input value (String)	Move directory destination path (including the target directory name)
General	Continue on error	Input value (Boolean)	Proceed to subsequent processing on error.

4. How to Use

Below is a real example of using the "Move Folder" activity:

Move the directory "C:\akaBotStudio\TestFolder\Test" into the "C:\akaBotStudio\TestFolder２" directory.

In akaBot Studio, drag and drop the ① "Move Directory" activity into the designated sequence. Once the activity is added, specify the path of the directory you want to move and the path of the destination directory.

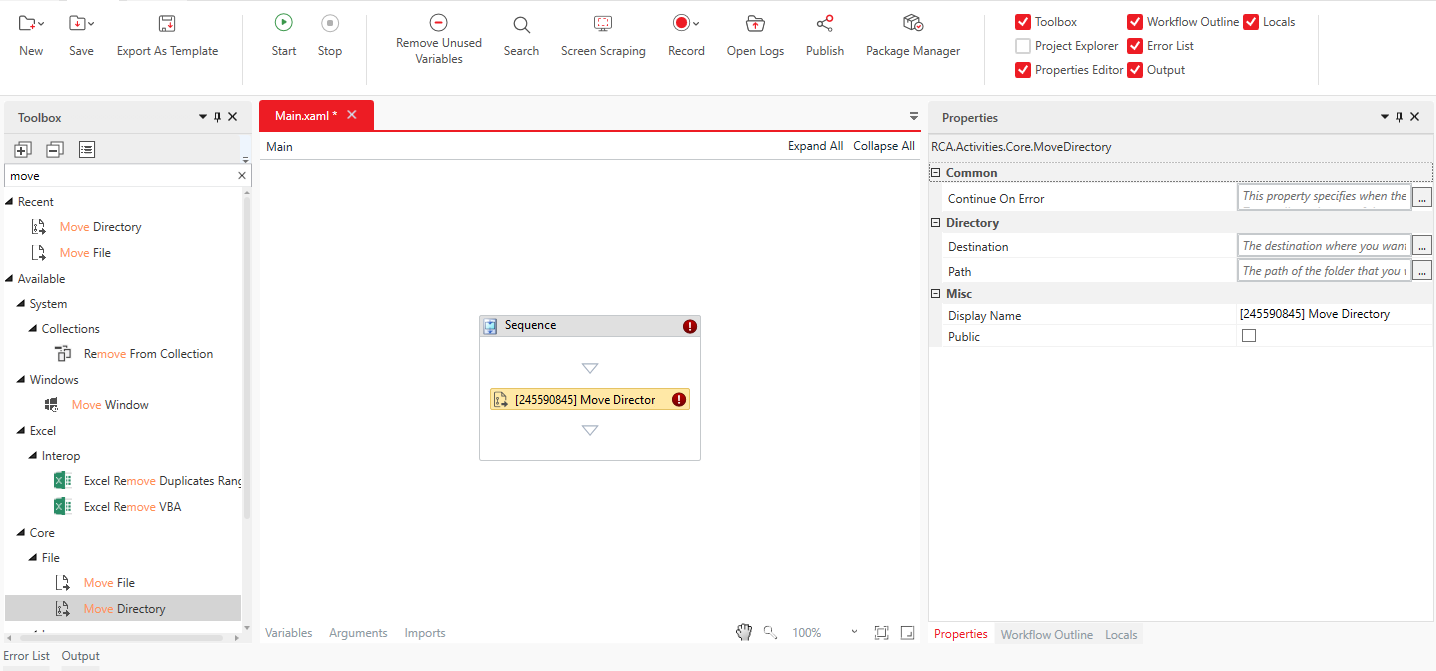

Below is an example screenshot.

To implement the example above:

② In Properties > Directory > Path, enter "C:\akaBotStudio\TestFolder\Test"

③ In Properties > Directory > Move Destination Path, enter "C:\akaBotStudio\TestFolder２"

With these entries, the configuration for Move Directory is complete.

Additionally, by setting the Move Destination Path to "C:\akaBotStudio\TestFolder２\TestData" , you can move the directory while keeping the data within the original Test directory intact, and simultaneously rename the directory from "Test" to "TestData"
