TABLE OF CONTENTS
- Activity program name
- Description
- Property
- How to use
1. Activity program name
RCA.Activities.Core.ReadTextFile
2. Description
Until Studio Version 2.0.2.0
Quick Access: "Toolbox" > "Core" > "Read Text File"
From Studio Version 2.0.3.0
Quick Access: "Toolbox" > "Core" > "File" > "Read Text File"
This activity reads all characters from the specified file and stores them in a String-type variable.
Note:
- Tested on akaBot Studio versions: 2.0.5.1, 2.1.0.0, 2.1.1.1
- Wording and UI elements may vary depending on the version.
3. Property
| Property item | Property name | Input field | Description |
|---|---|---|---|
| Misc | Public | Check box | The variables and arguments within the activity are written to the log file and pushed to the Center. (For details, refer to "About the 'Public' Property.") |
| Display Name | Any String | Reflected in design panel's activity | |
| File | Encoding | Enter value (String type) | Specify the text file's character encoding (Optional) |
| File Name | Enter value (String type) | Sprcify the file name of read tex file. | |
| Output | Text | Enter value (String type) | Store the read value in the specified variable. |
4. How to use
In this workflow, we will demonstrate the process of reading a text file named "ReadTextFiledemo.txt" located on the computer and displaying its contents in a message box.

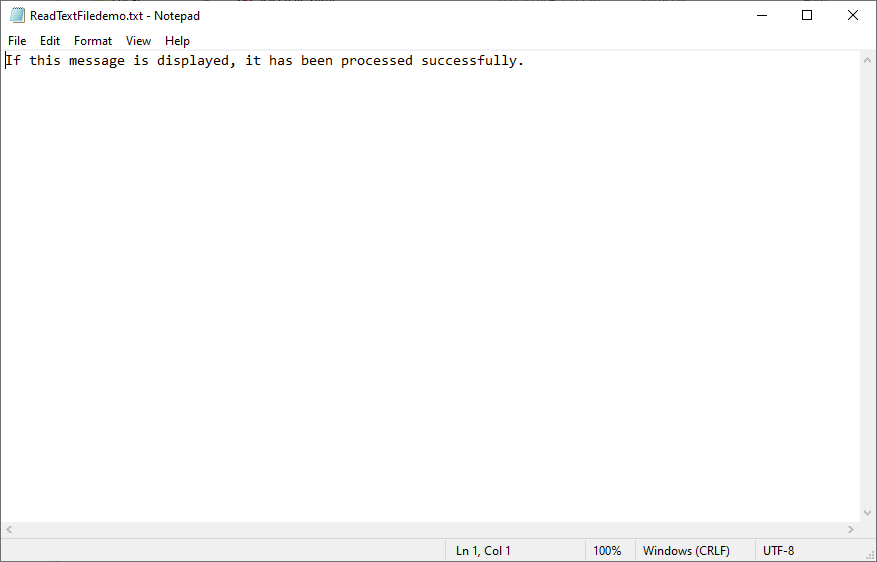

The contents of the text file are as follows:

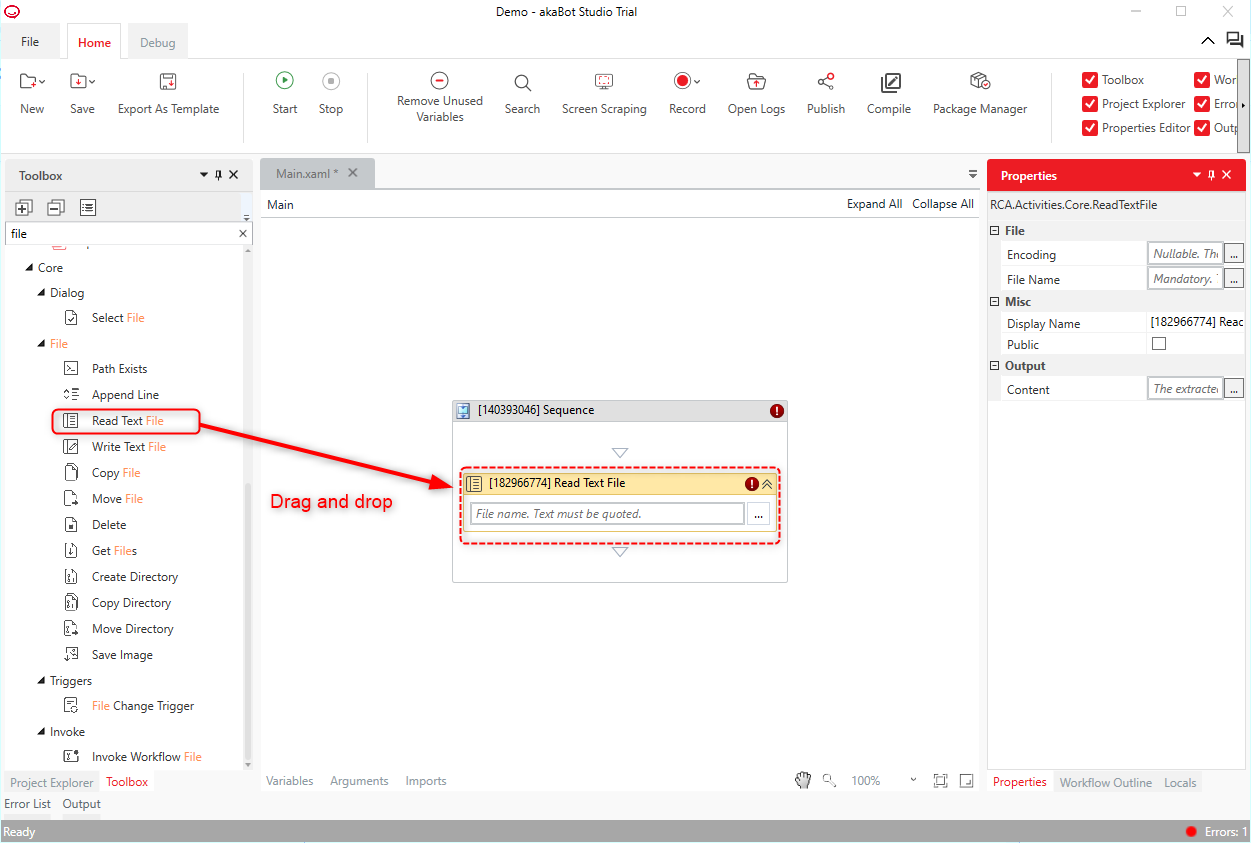

First, drag and drop the **"Read Text File"activity from "Core" > "File" into the Designer panel.

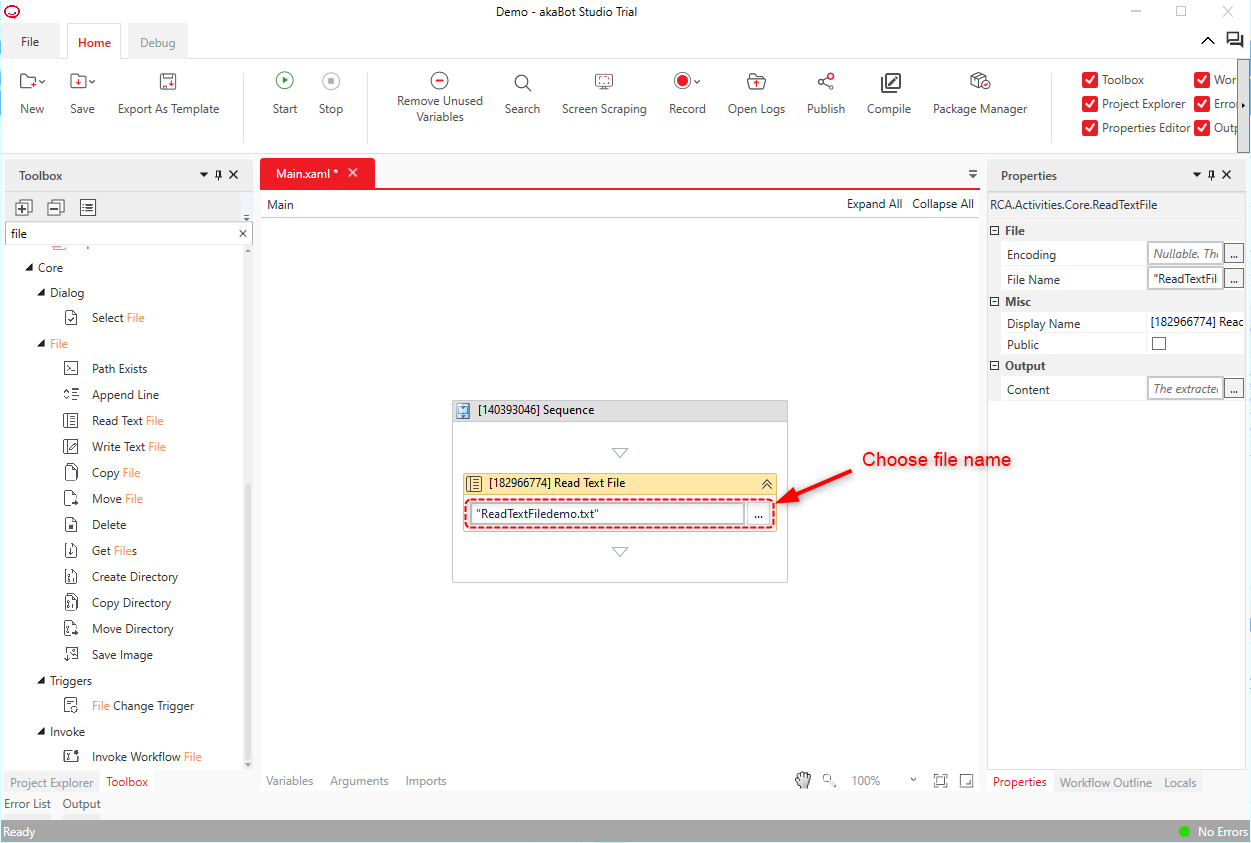

Next, set the text file to be read in the Properties panel. Enter the following path in the File Name field.

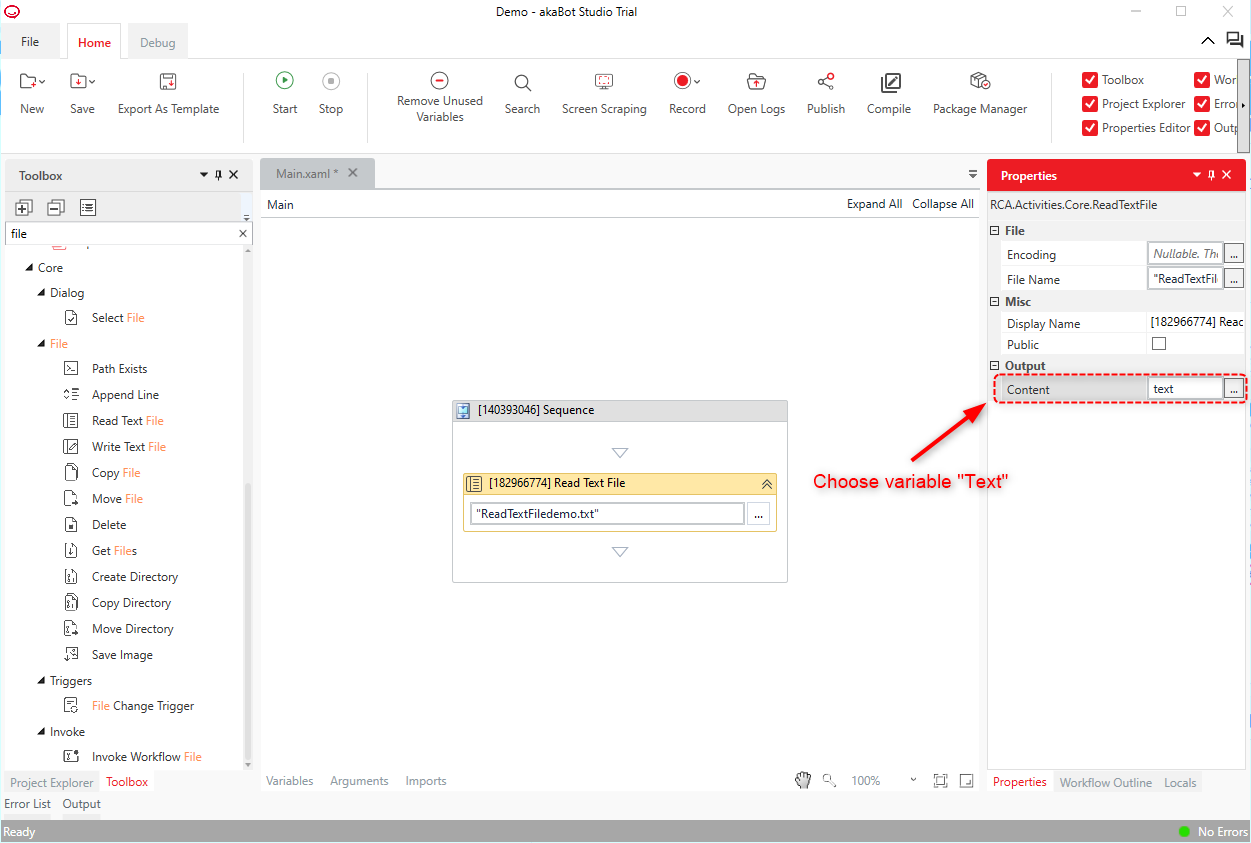

Next, create a String-type variable named "text" to store the read text. You can create the variable using Ctrl + K or other methods. (*For details on creating variables, refer to "Creating Variables")
After creating the variable, set it in the "Output" > "Text" property.

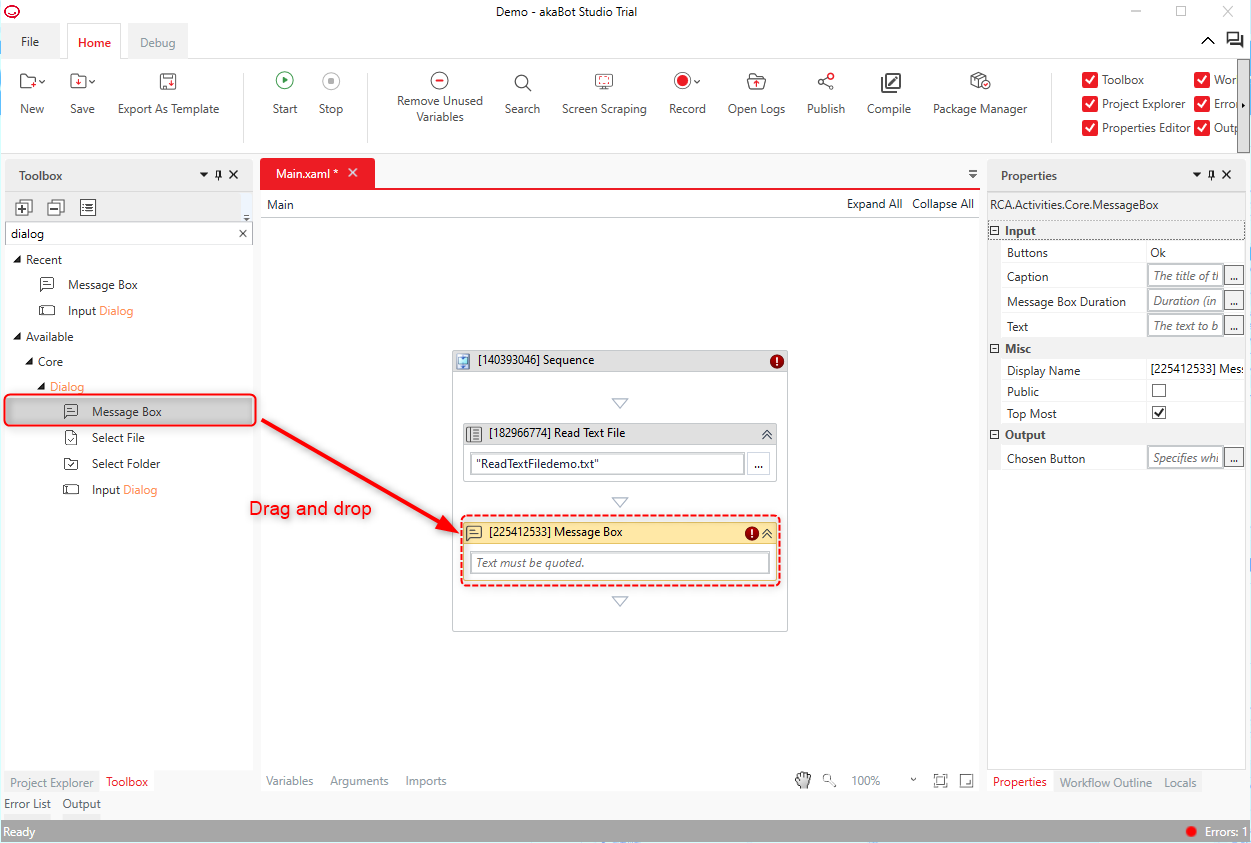

Next, drag and drop the "Message Box" activity into the Designer panel.

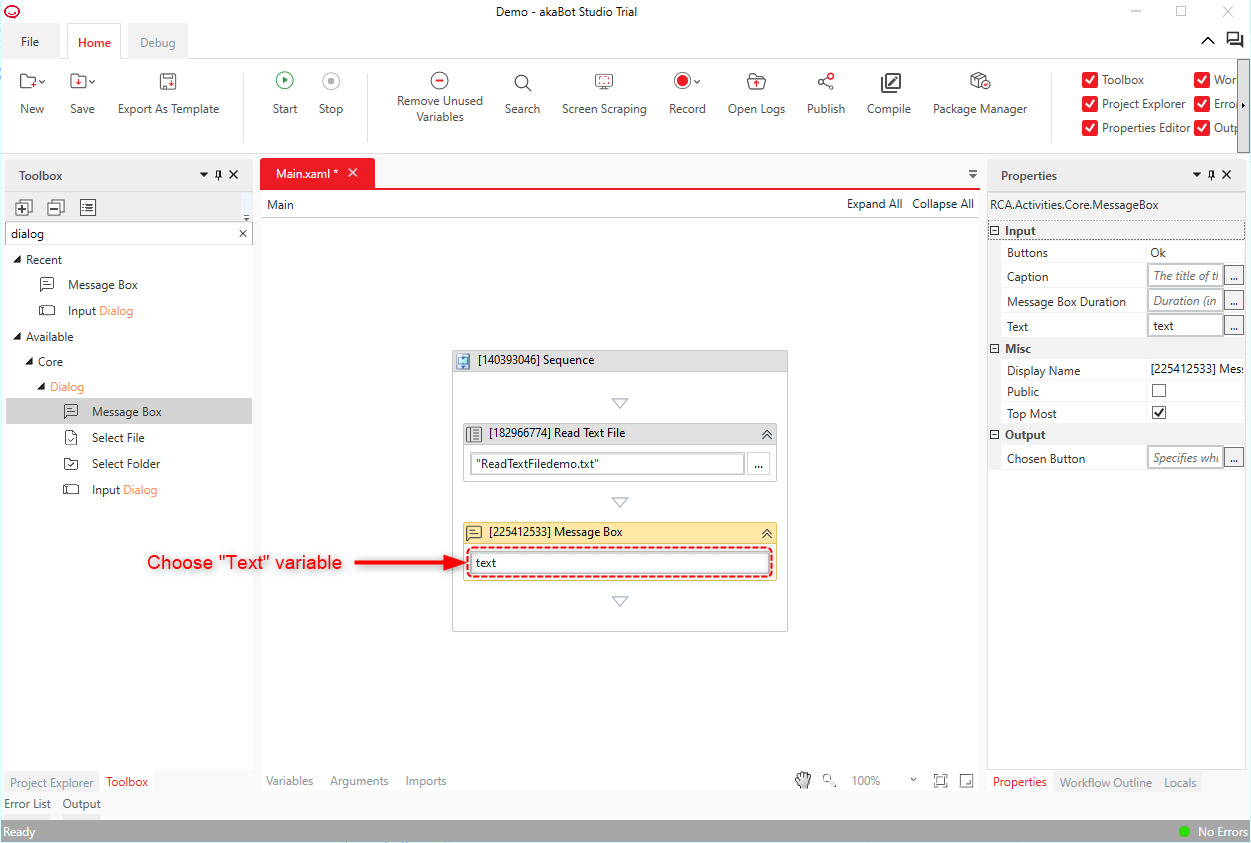

After placing the activity, set the variable "text" in the "Input" > "Text"
Now, let's run the workflow to verify its functionality. Click "Home > Start" or press F5 to execute the workflow.

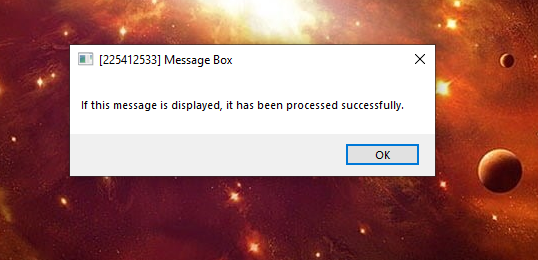

You should see a message box displaying:
"If this message is displayed, it has been processed successfully."
