TABLE OF CONTENTS
1. Activity program name
RCA.Activities.Core.AddLogFields
2. Description
Up to Studio version 2.0.2.0:
Quick Access: "Toolbox" > "Core" > "Add Log Fields"From Studio version 2.0.3.0:
Quick Access: "Toolbox" > "Core" > "Log" > "Add Log Fields"
This activity allows you to add custom log fields to each log message.
Tested on Studio versions: 2.2.0.5
Note: Descriptions and terms may vary depending on the version.
3. Properties
| Property item | Property name | Input field | Description |
|---|---|---|---|
| Misc | Public | Checkbox | If checked, variables and arguments within the activity are written to log files and pushed to Center. (Refer to "About Public Property.") |
Display Name | Any String | Reflected as the activity name on the Designer panel. | |
| Input | Fields | Fields | Specifies the fields to add to the output log. |
4. How to use
This section explains the use of the "Add Log Fields" activity through an example.
Example: Adding Custom Fields to Log Messages
In this example, we'll configure the activity to add a custom field to log messages and verify the output.
Step-by-Step Instructions:

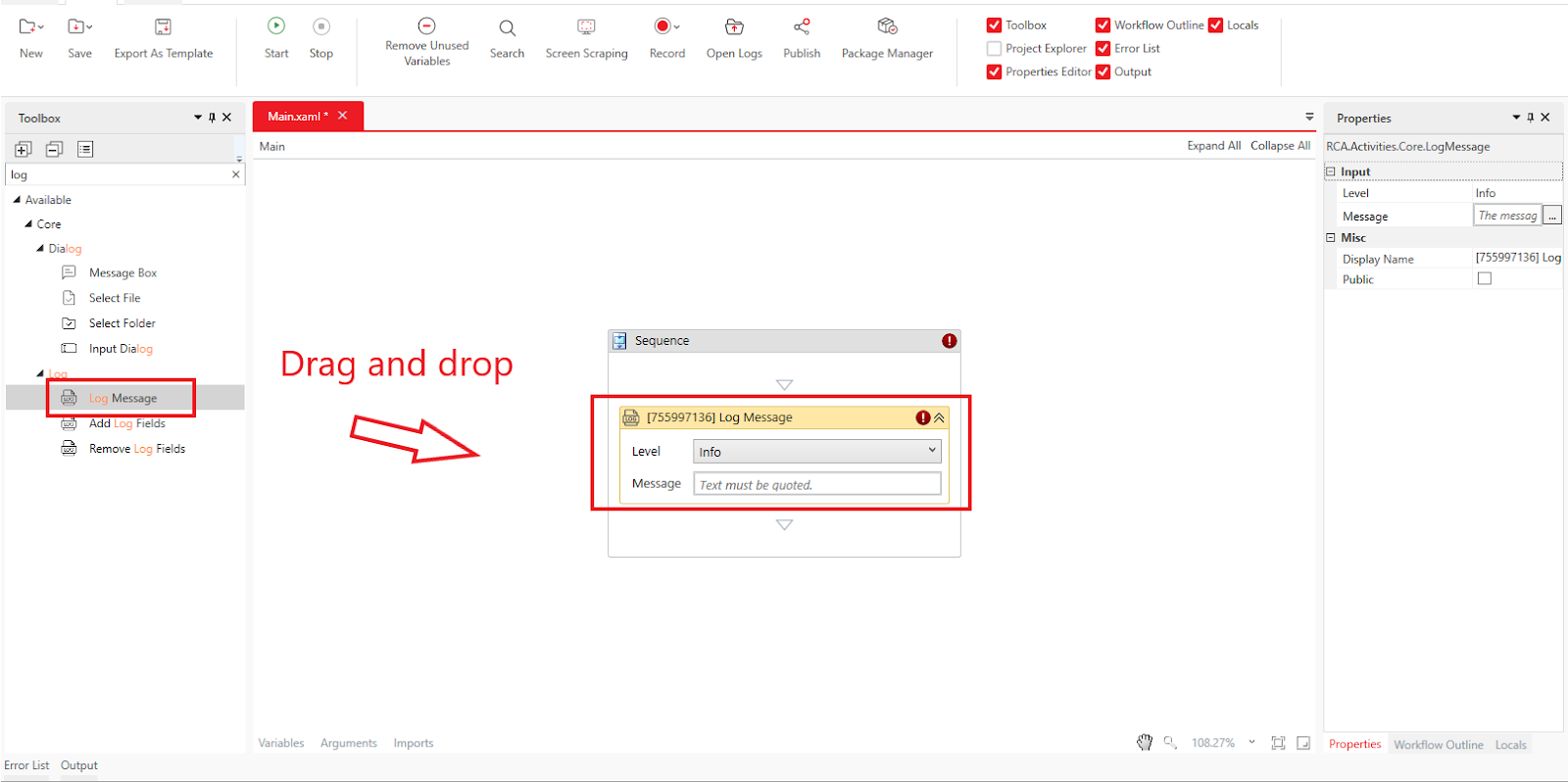

Place the "Log Message" Activity
Drag and drop the "Core" > "Log" > "Log Message" activity from the Toolbox into the Designer panel.

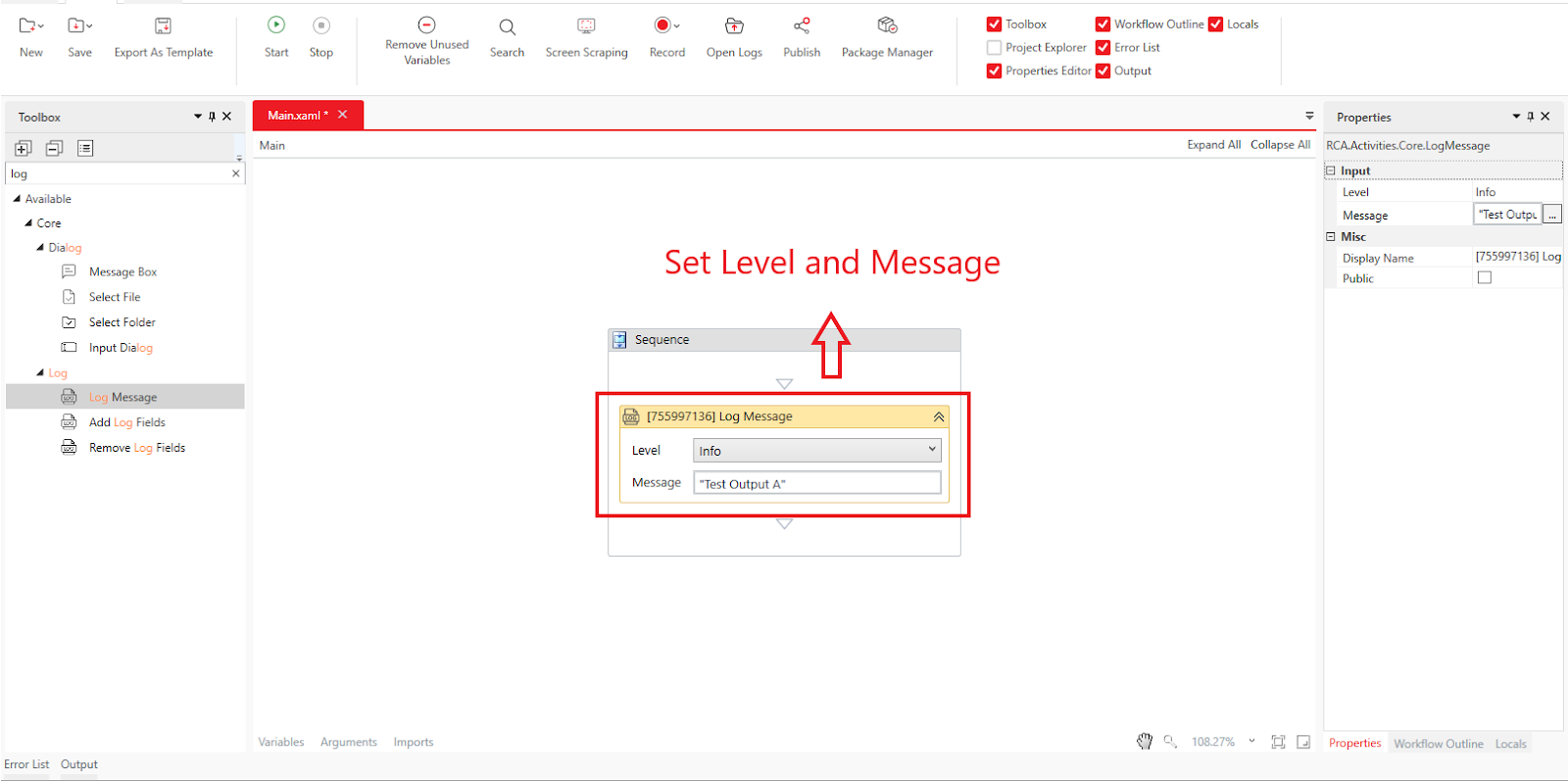

Configure the First Log Message
Set the following properties for the "Log Message" activity:
Level: Select "Info".
Message: Enter "Test Output A".

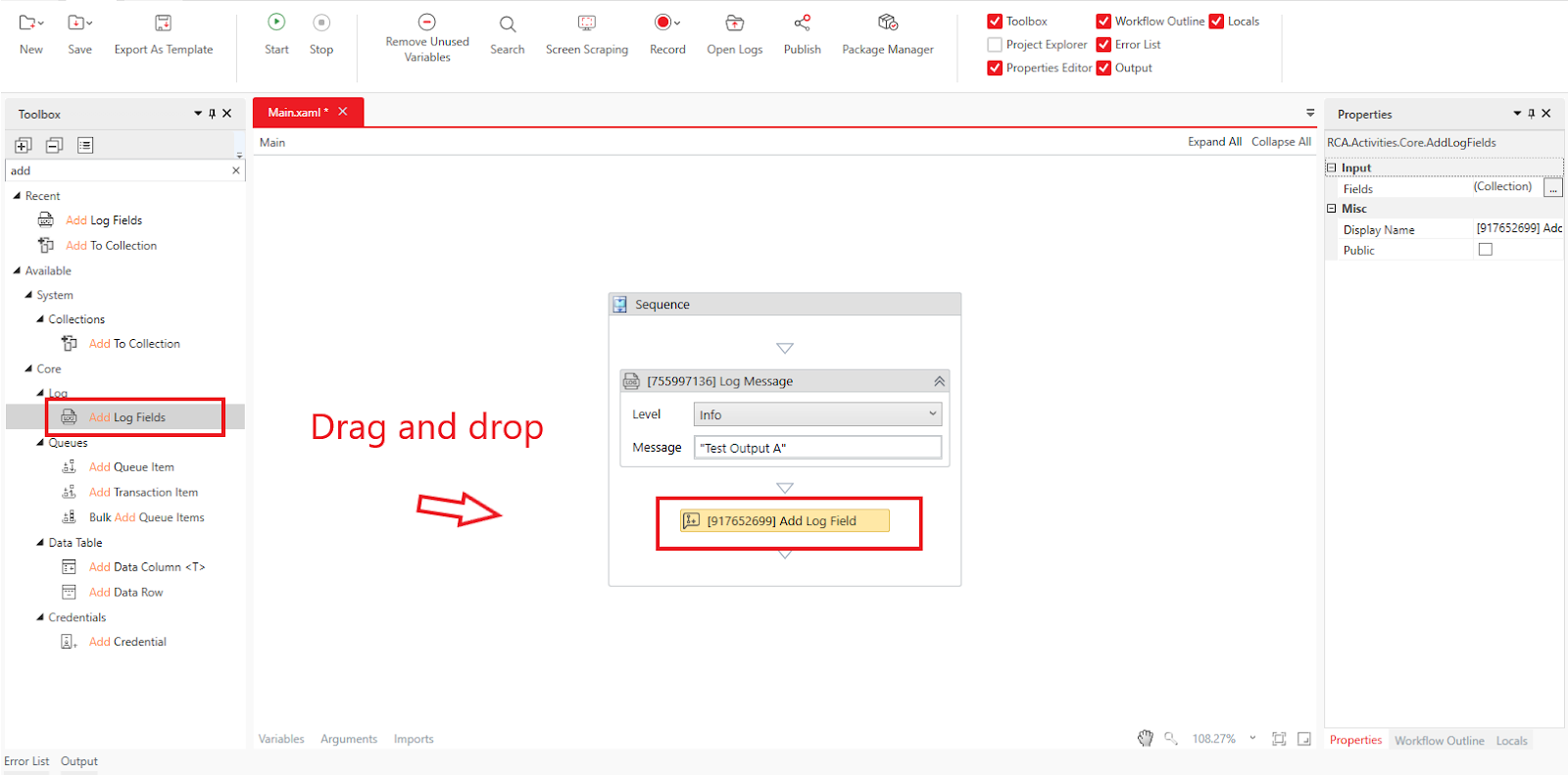

Place the "Add Log Fields" Activity
Drag and drop the "Core" > "Log" > "Add Log Fields" activity from the Toolbox into the Designer panel.

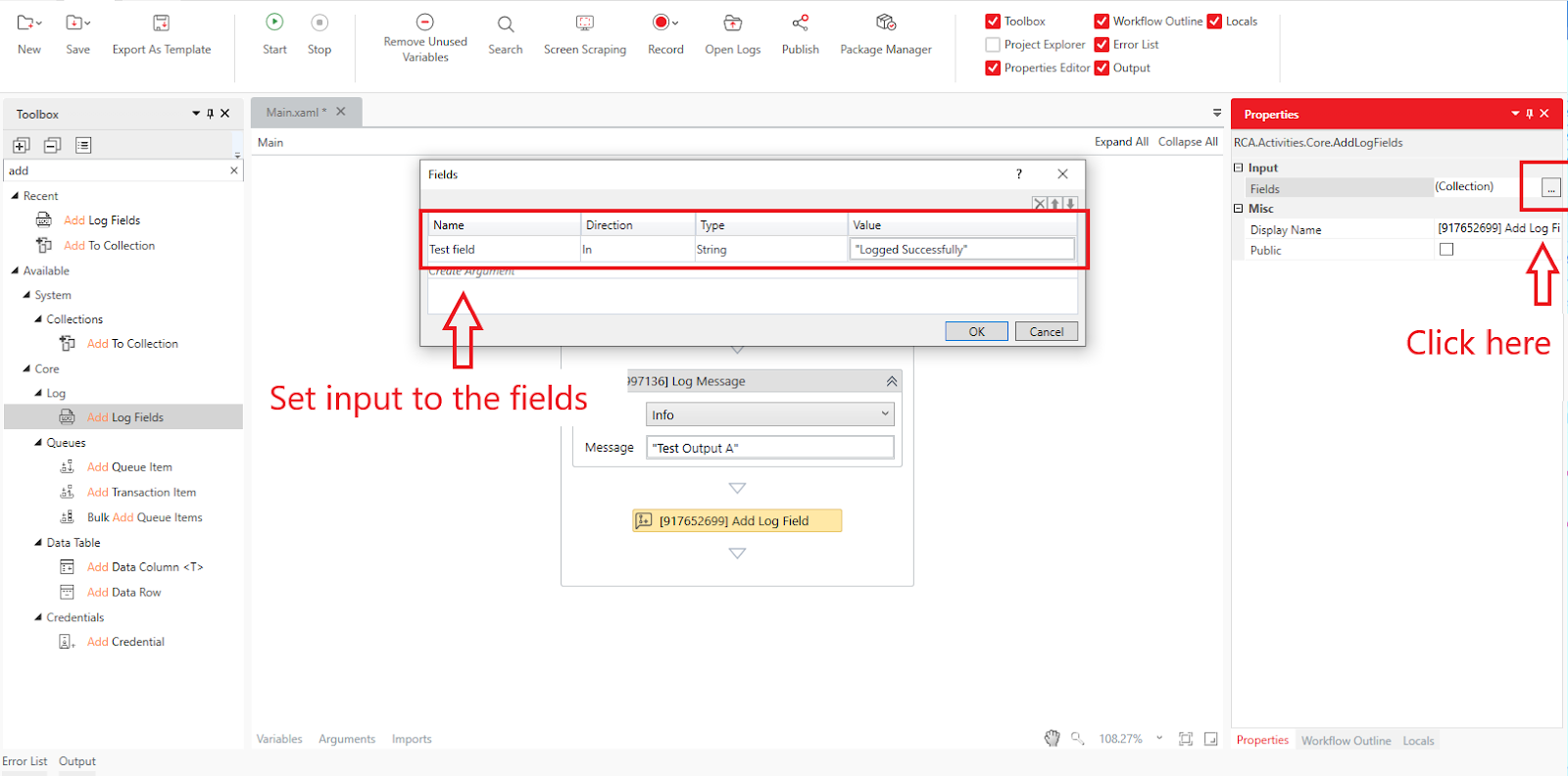

Configure Custom Fields
In the "Fields" property, configure the custom field as follows:
Name: Enter "TestField".
Direction: Ensure it is set to "Input".
Type: Select "String".
Value: Enter "Logged Successfully".
After entering the values, click "OK".

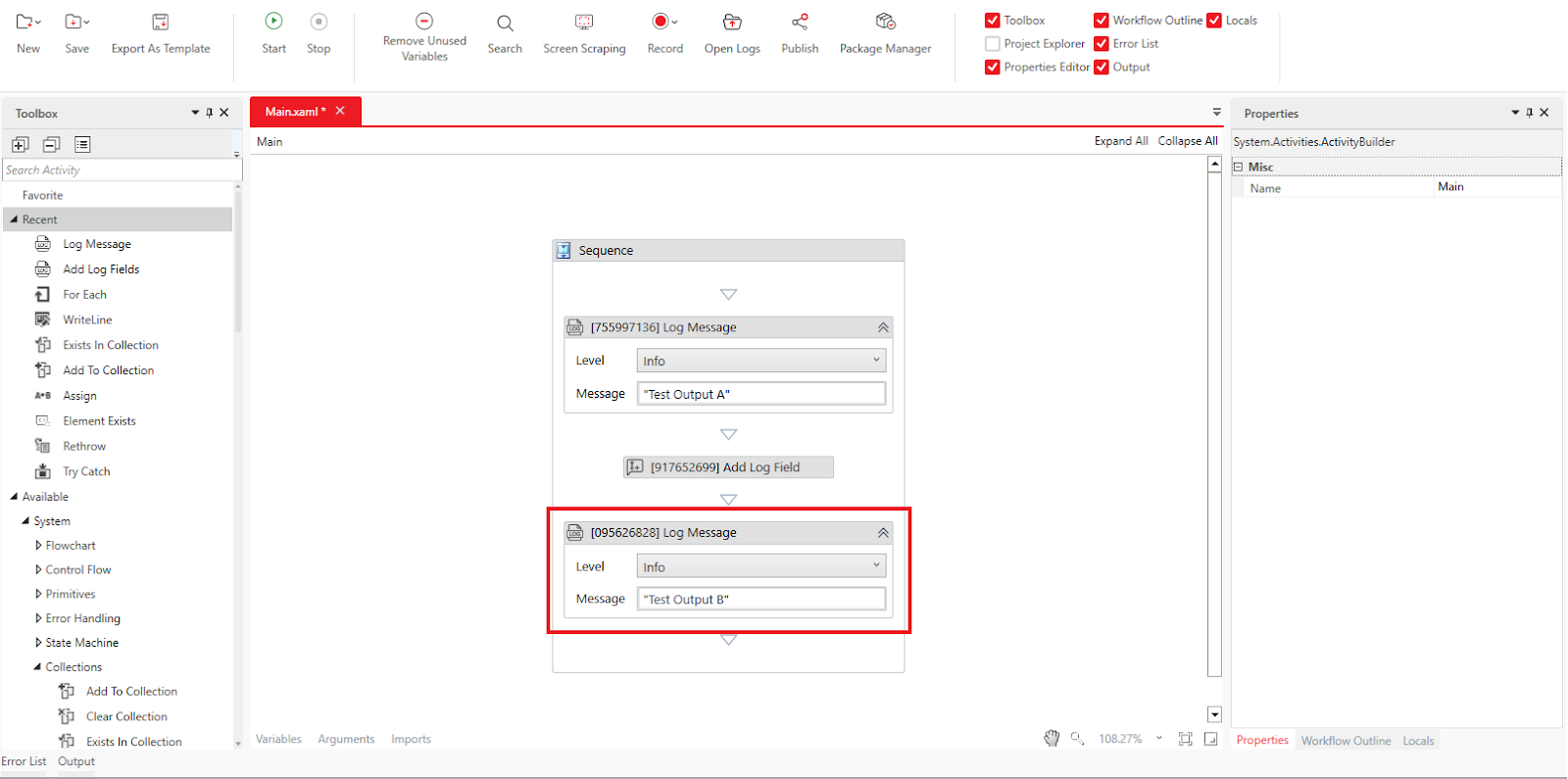

Configure the Second Log Message
Place another "Write Log" activity in the Designer panel and configure the following:
Level: Select "Info".
Message: Enter "Test Output B".
Run the Workflow
Save the workflow and execute it by clicking "Home > Start" or pressing F5.
Verify the Logs
After execution, open the log files by clicking "Open Logs" from the top menu. Navigate to the directory containing the log files.
- For example, the log file might be named: yyyy-mm-dd_Studio_Execution.log.
- Open the log file and check the entries:
"Test Output A": No custom fields will be present as it was logged before the "Add Log Fields" activity.
"Test Output B": The custom field "TestField" will be added, showing the value "Logged Successfully".
Important Notes:
Deleted log fields or changes will not affect log messages recorded before the "Add Log Fields" activity.
For further details about logs, refer to "About Studio/Agent Logs Stored Locally."
