"Message Box" activity

Created by akaBot Support, Modified on Thu, 21 Nov, 2024 at 3:15 PM by akaBot Support

1. Activity Program Name

RCA.Activities.Core.MessageBox

2. Description:

Studio Version until 2.0.2.0:
Quick Access: Toolbox > Core > Message Box
Studio Version from 2.0.3.0:
Quick Access: Toolbox > Core > Dialog > Message Box

This activity displays a message box with the specified text and buttons. The message box can automatically close after a set number of milliseconds, and it can also be set to always appear in the foreground.

3. Properties

Property field	Property name	Input field	Description
Other	Public	Checkbox	Logs the variables and arguments in the activity to the log file and pushes them to the Center. (For more details, refer to "About the Public Property.")
Foreground	Checkbox		When checked, the message box is always displayed in the foreground.
Display Name	String Input		The name of the activity as it appears in the designer panel.
Output	Selected Button	String Input	Stores which button was clicked, as specified in the "Buttons" property.
Input	Caption	String Input	Displays the text as the title of the message box.
Text	String Input		Displays the text inside the message box.
Buttons	Dropdown		Displays buttons as per the chosen option: Ok, OkCancel, YesNoCancel, YesNo.
Display Time	Int32 Input		If a value greater than 500 is specified, the message box will automatically close after the given milliseconds. If no value is specified or a value less than 500 is provided, the message box will remain open until a button is pressed or the box is manually closed.

4. Usage

The buttons displayed in the message box vary depending on the value specified in the "Buttons" property.

Value Specified in "Buttons" Property	Displayed Buttons
Ok	"OK"
OkCancel	"OK", "Cancel"
YesNoCancel	"Yes", "No", "Cancel"
YesNo	"Yes", "No"

Example Usage:

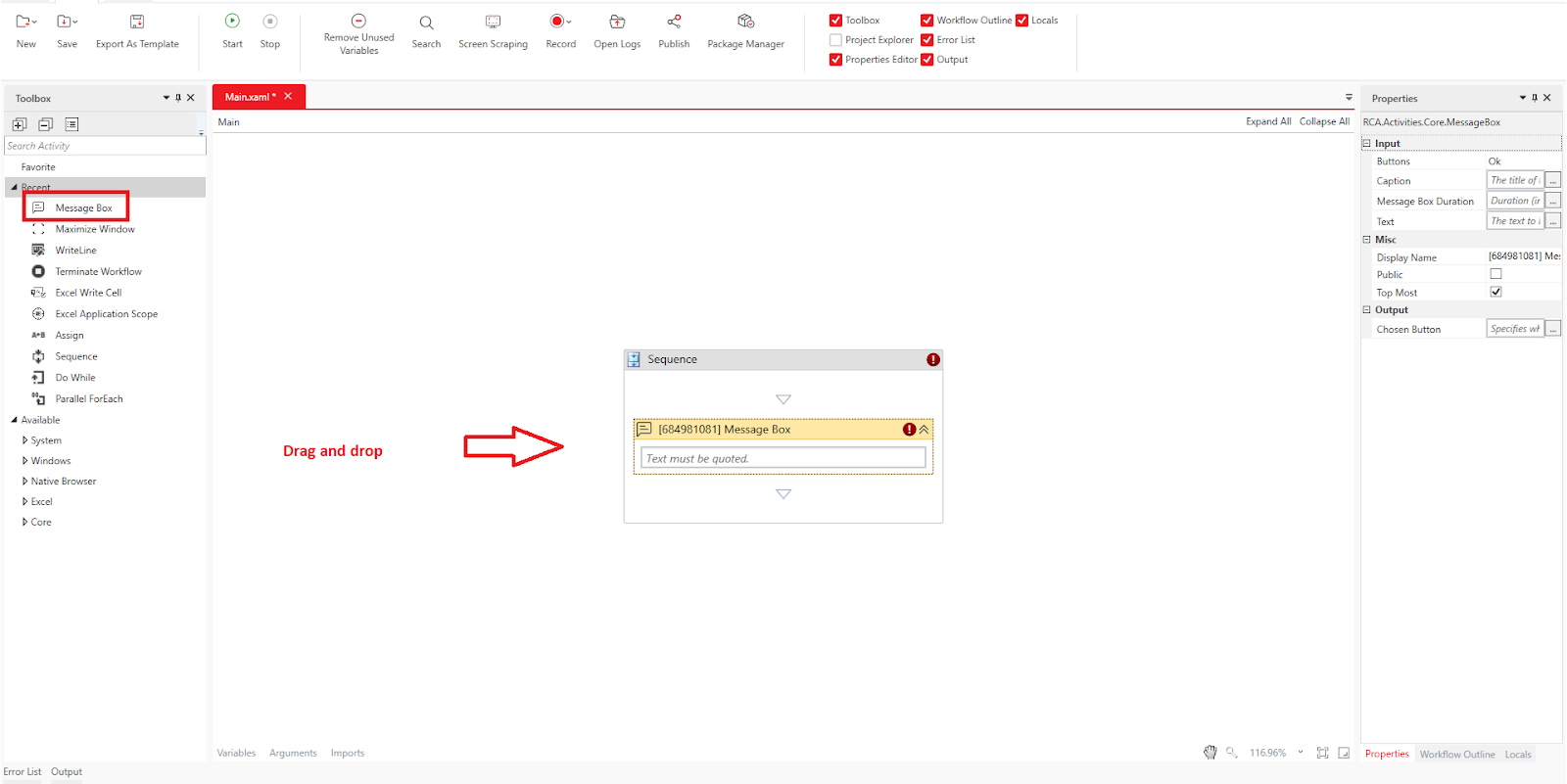

Drag and drop the Core > Message Box activity from the toolbox into the designer panel.

Input the desired values into the Caption and Text properties, and select the appropriate buttons from the Buttons dropdown. In this example:

Caption: "Title"
Text: "Message"
Buttons: YesNoCancel

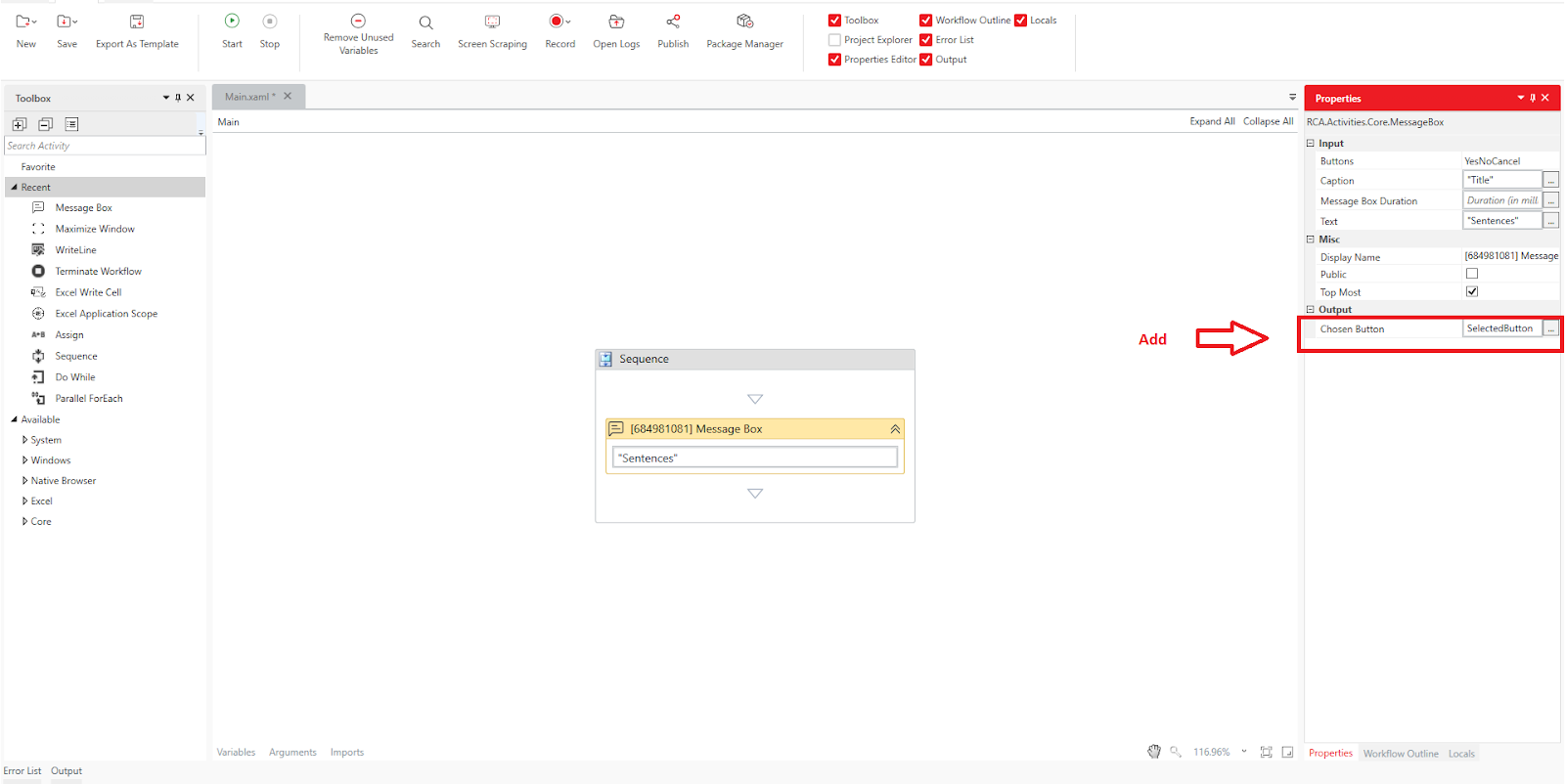

To log which button was clicked, set a variable called SelectedButton in the Output > Selected Button option. (For details on setting up variables, refer to "Creating Variables.")

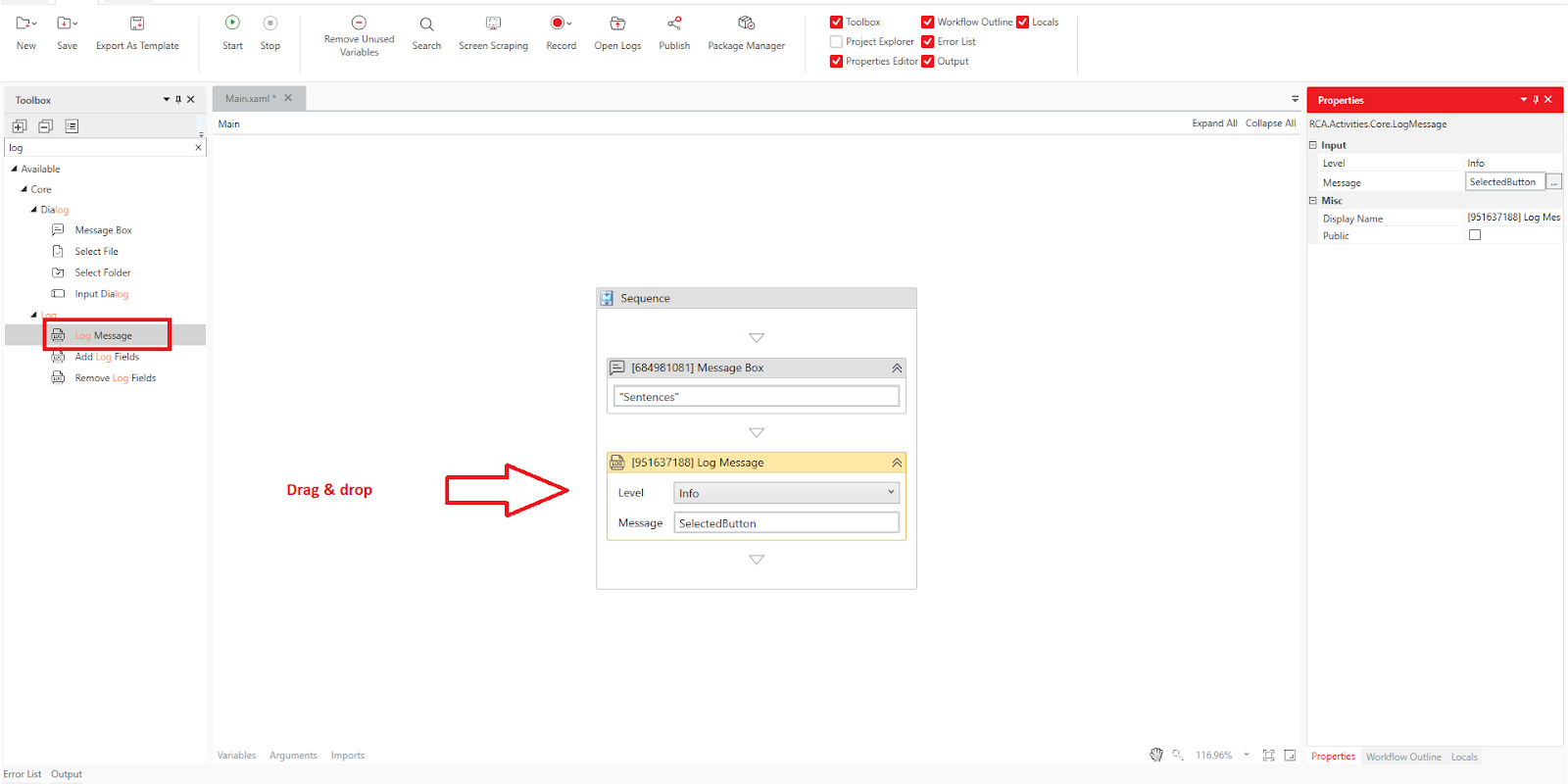

Drag and drop the Core > Log Message activity from the toolbox into the designer panel.

Set the SelectedButton variable in the Input > Message property.

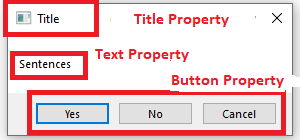

Click Home > Start or press F5 to run the workflow, and the message box will appear.

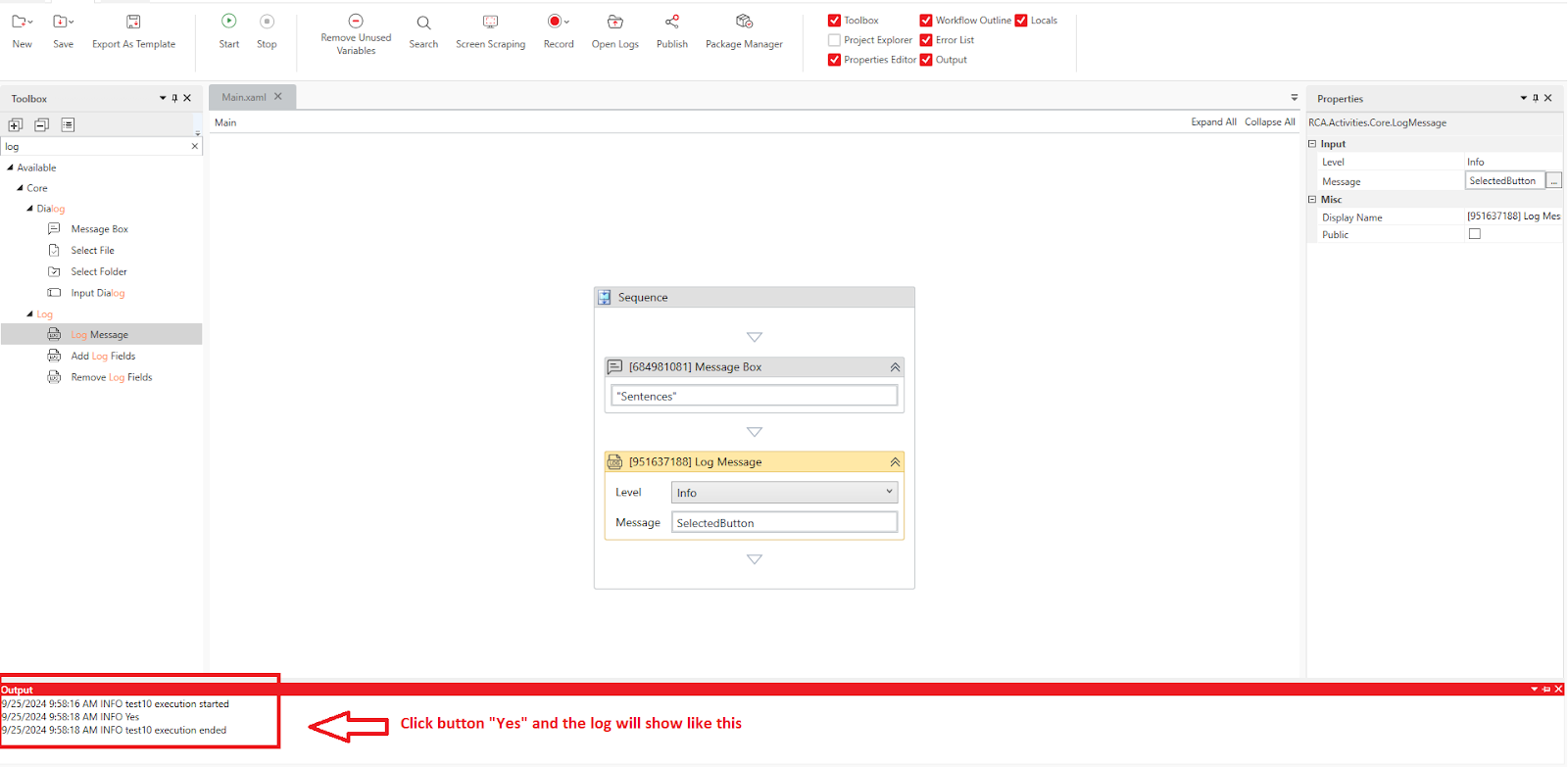

In this example, when you click Yes, the log in Studio's Output will record that "Yes" was clicked.

Auto-Close Feature:

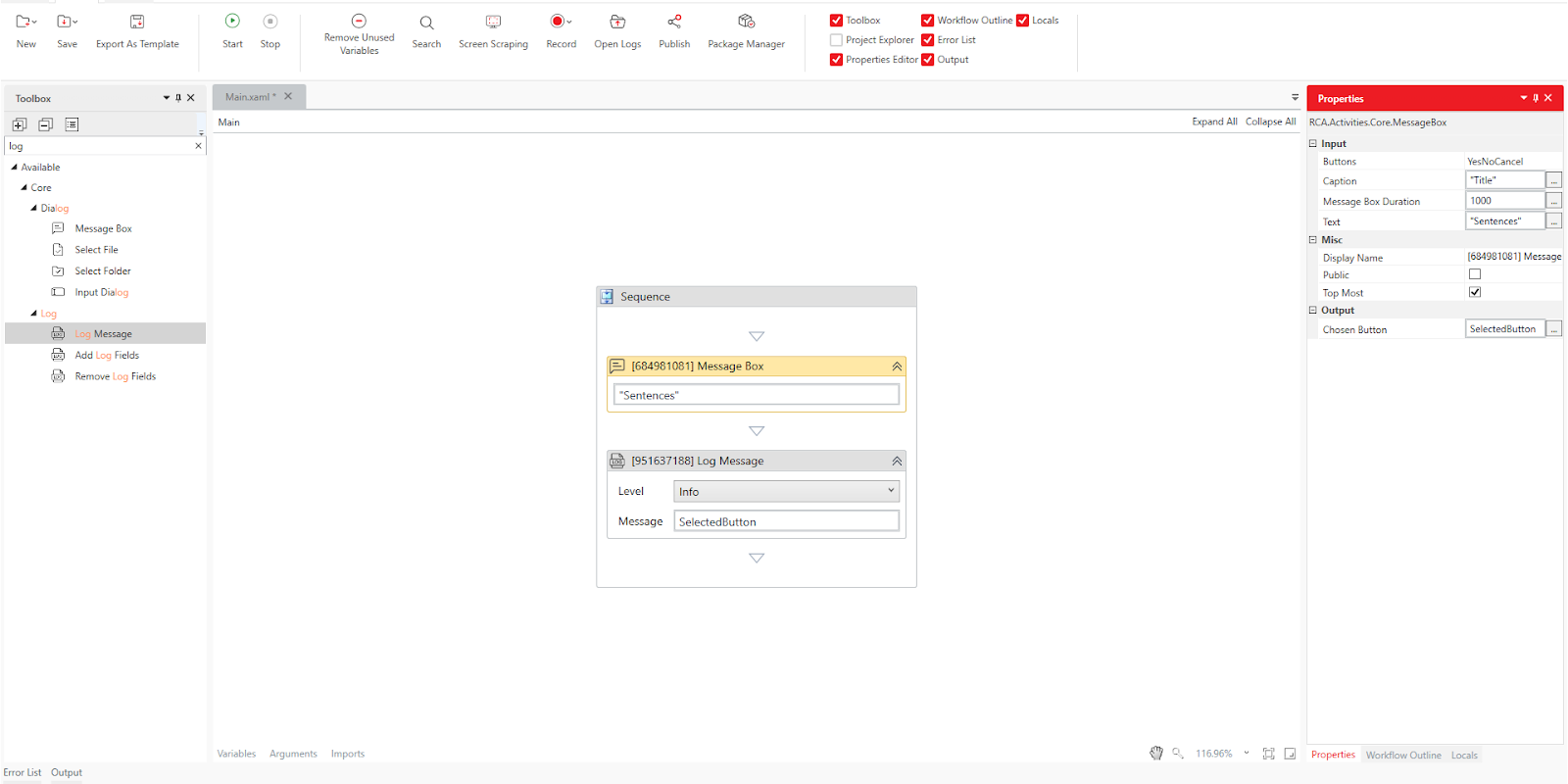

Now, let's add the Display Time property. Set it to 1000 milliseconds (1 second).
Click Home > Start or press F5 to run the workflow. The message box will appear but will automatically close after 1000 milliseconds (1 second).

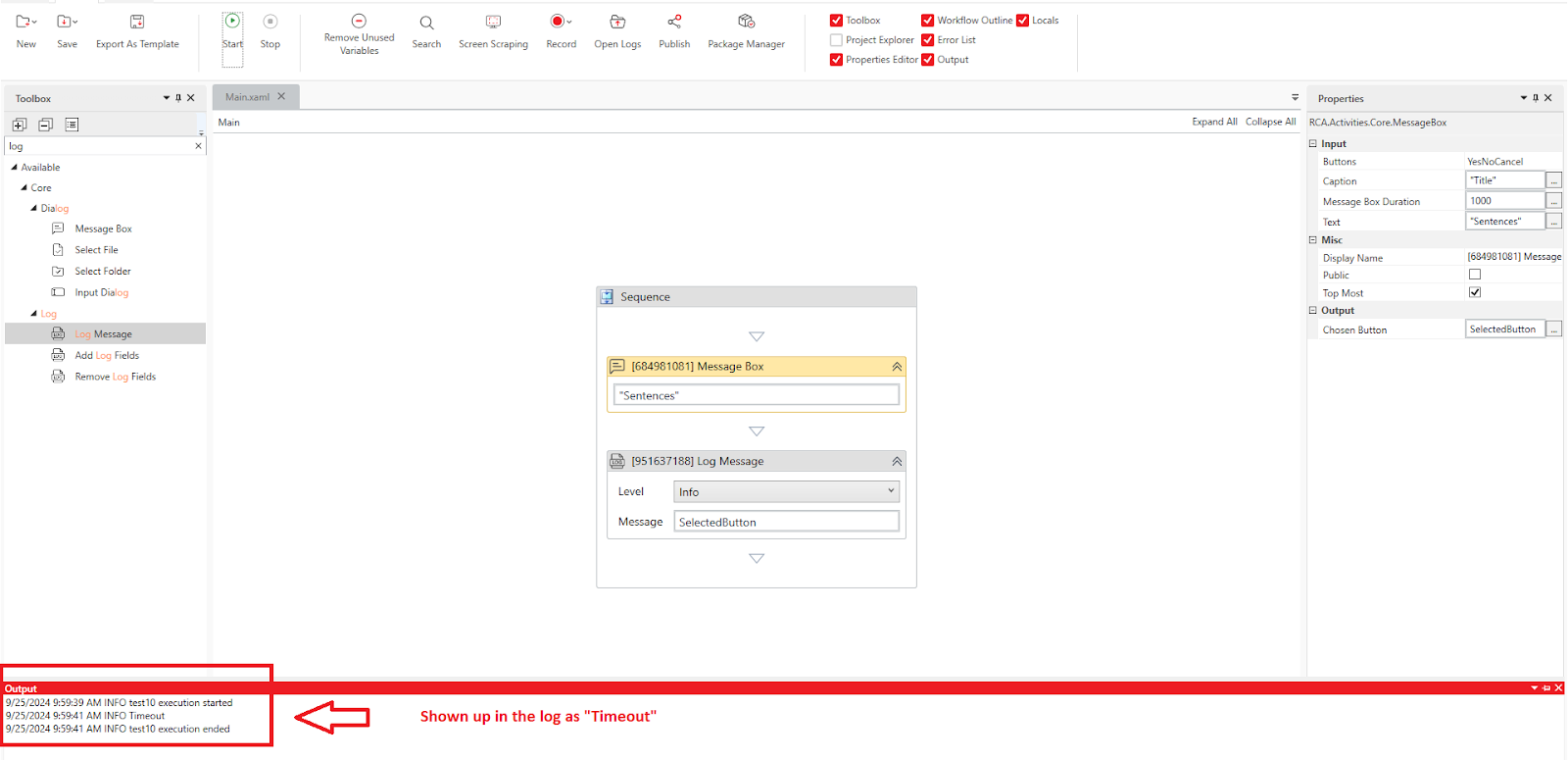

Since no button was clicked, the log will show "Timeout" in the output.

5. Cautions

When the "Buttons" property is set to Ok, there is a specific behavior to be aware of. Regardless of how the message box is closed, the log will always display "OK" in the following scenarios:

Clicking the "OK" button
Clicking the "X" to close the message box
If no action is taken within the time specified in the Display Time property
