TABLE OF CONTENTS
1. Activity program name
RCA.Activities.Core.Comment
2. Description
Until Studio Version 2.0.2.0
Quick Access: Toolbox > Core > Comment
From Studio Version 2.0.3.0
Quick Access: Toolbox > Core > Debug > Comment
You can add comments to the workflow. Comments are ignored during workflow execution.
*Note: The versions of akaBot Studio confirmed for operation: 2.0.5.1, 2.1.0.0
*Please note that some wording may differ depending on the version.
3. Properties
| Property item | Property name | Input field | Description |
|---|---|---|---|
| Misc | Public | Checkbox | The variables and arguments within the activity are written to the log file and pushed to the Center. (For more details, refer to "About the 'Public' Property Item.") |
| Display name | Any String | Reflected in the activity name on the Designer Panel. | |
| Input | Text | Any String | Reflected within the "Comment" activity on the Designer Panel. |
4. How to use
We will confirm that the content entered in the "Comment" is not displayed when the workflow is executed, and the process continues.

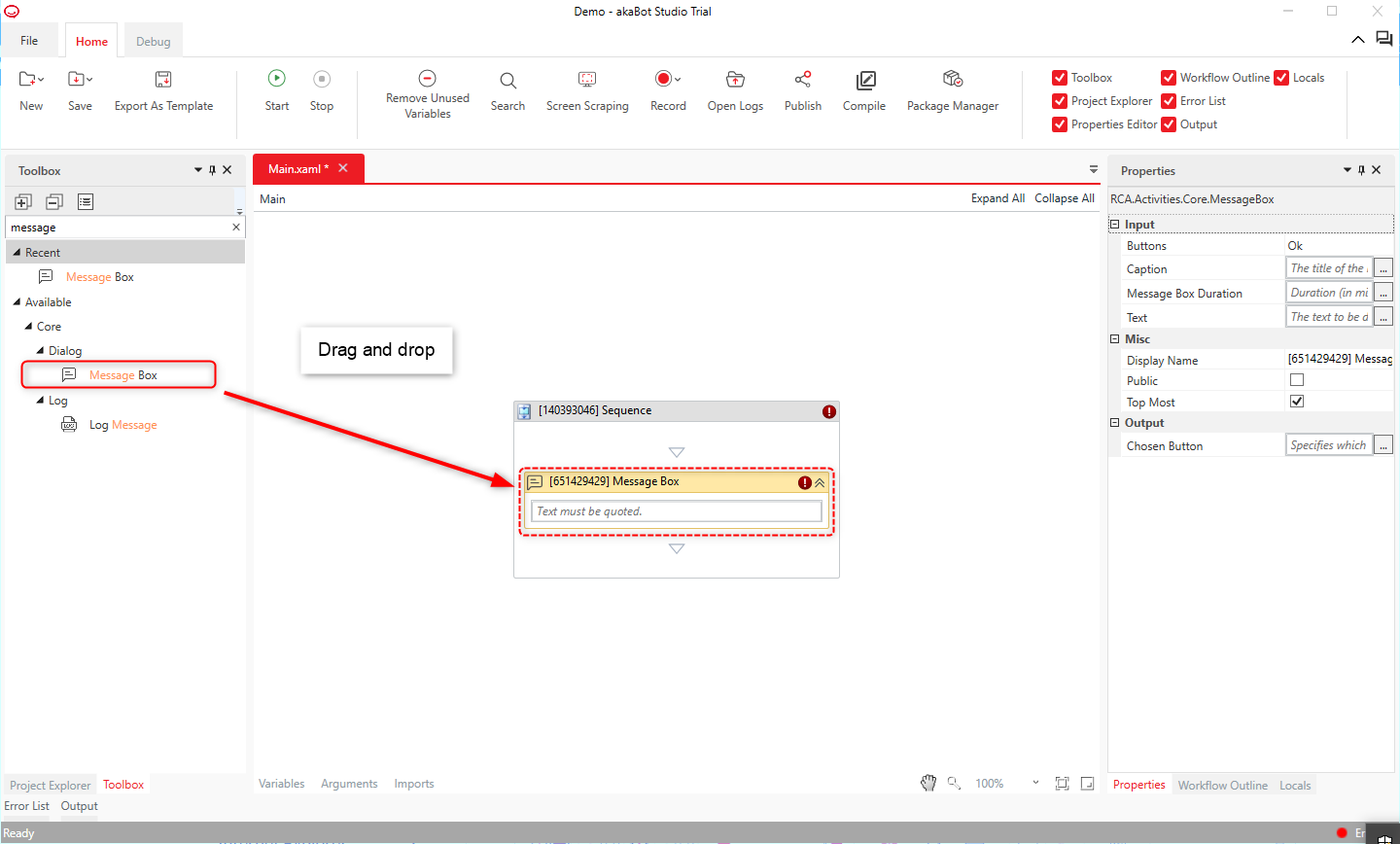

First, as a comparison, drag and drop the "Message Box" activity, which displays a message box on the screen, onto the Designer Panel.
Enter "Display message".

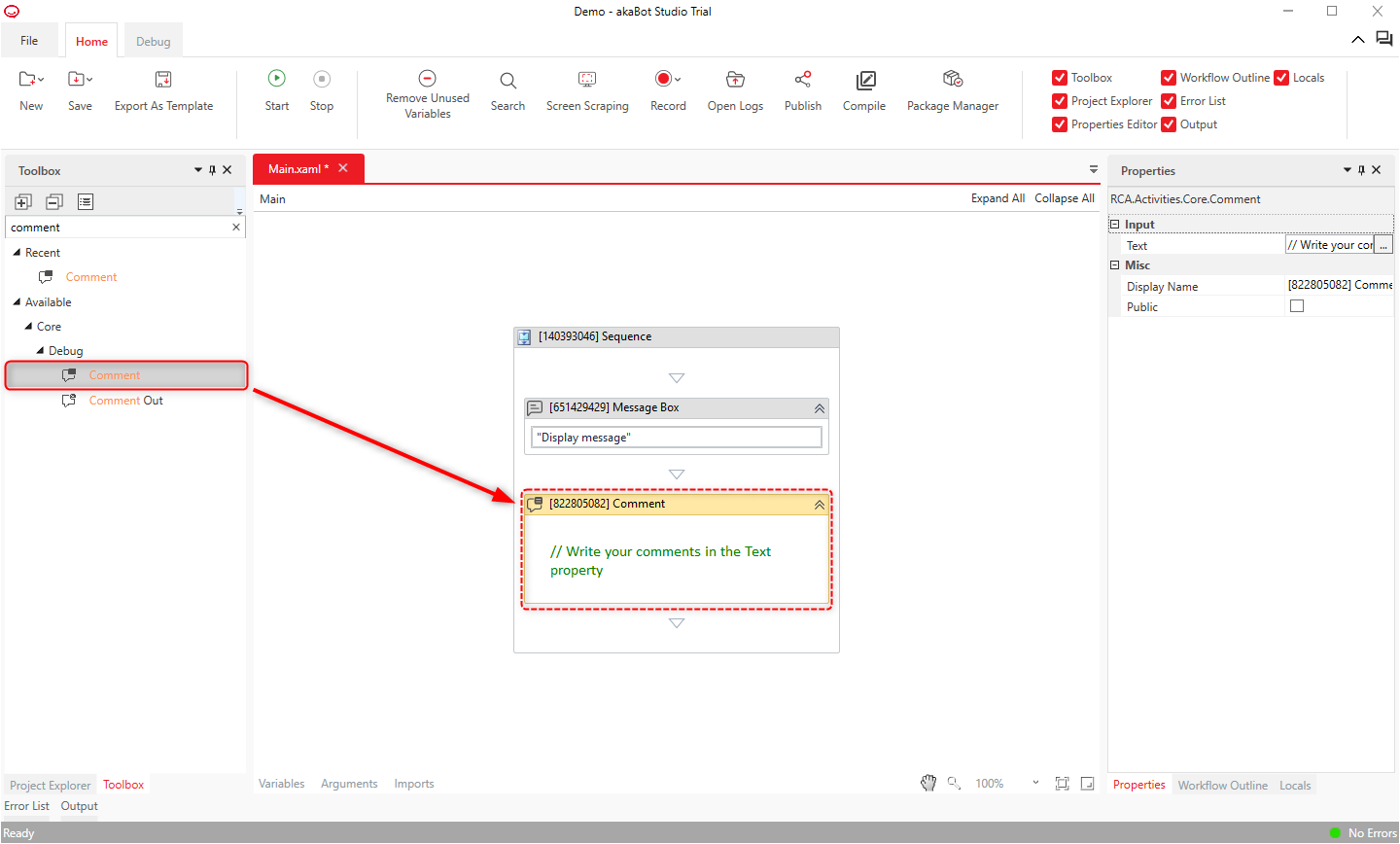

Next, drag and drop the "Comment" activity, which is the activity for this example, onto the Designer Panel.

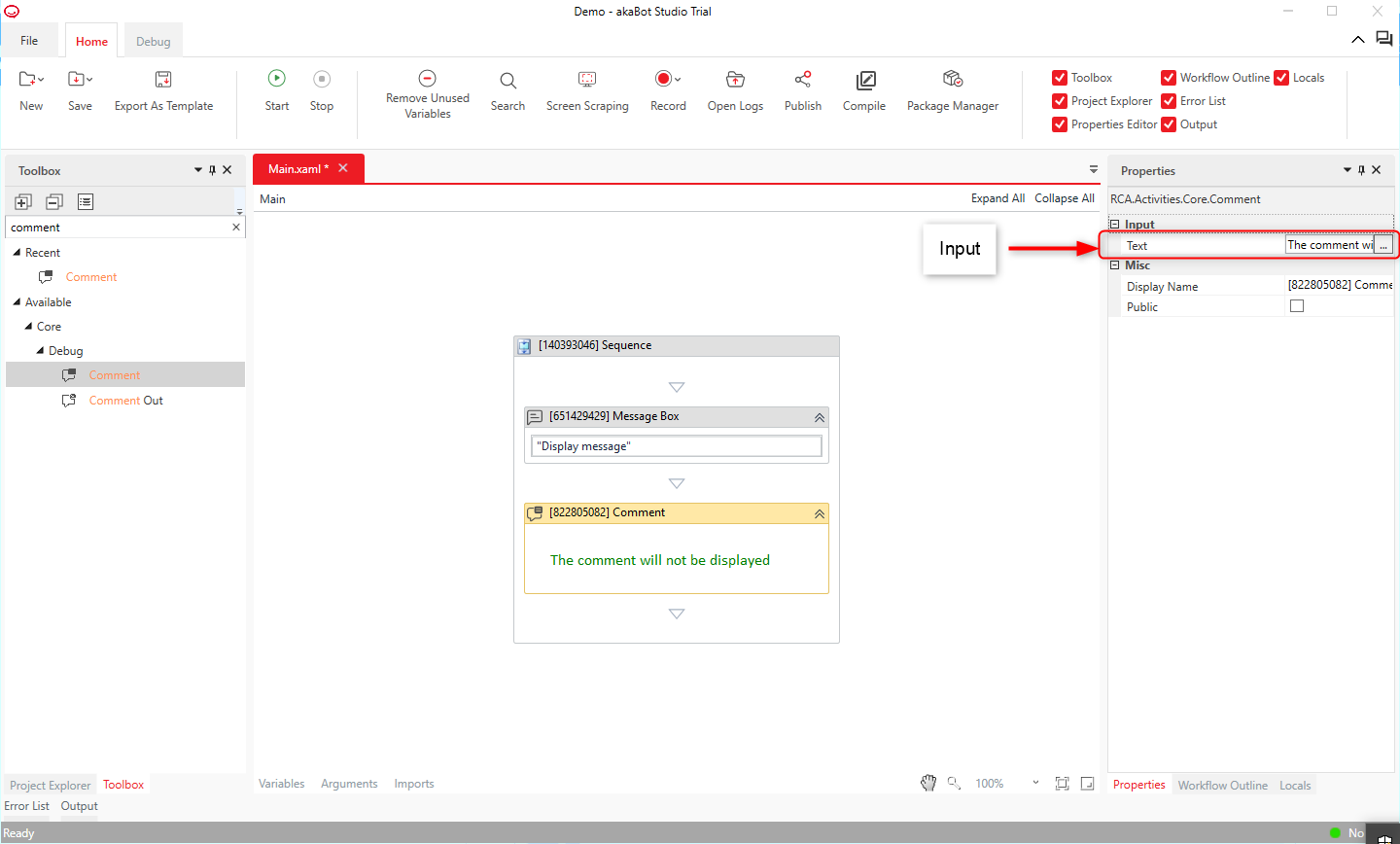

In the Properties panel, under Input > Text, enter "The comment will not be displayed." and press the Enter key.
After pressing the Enter key, confirm that the input is reflected within the activity.

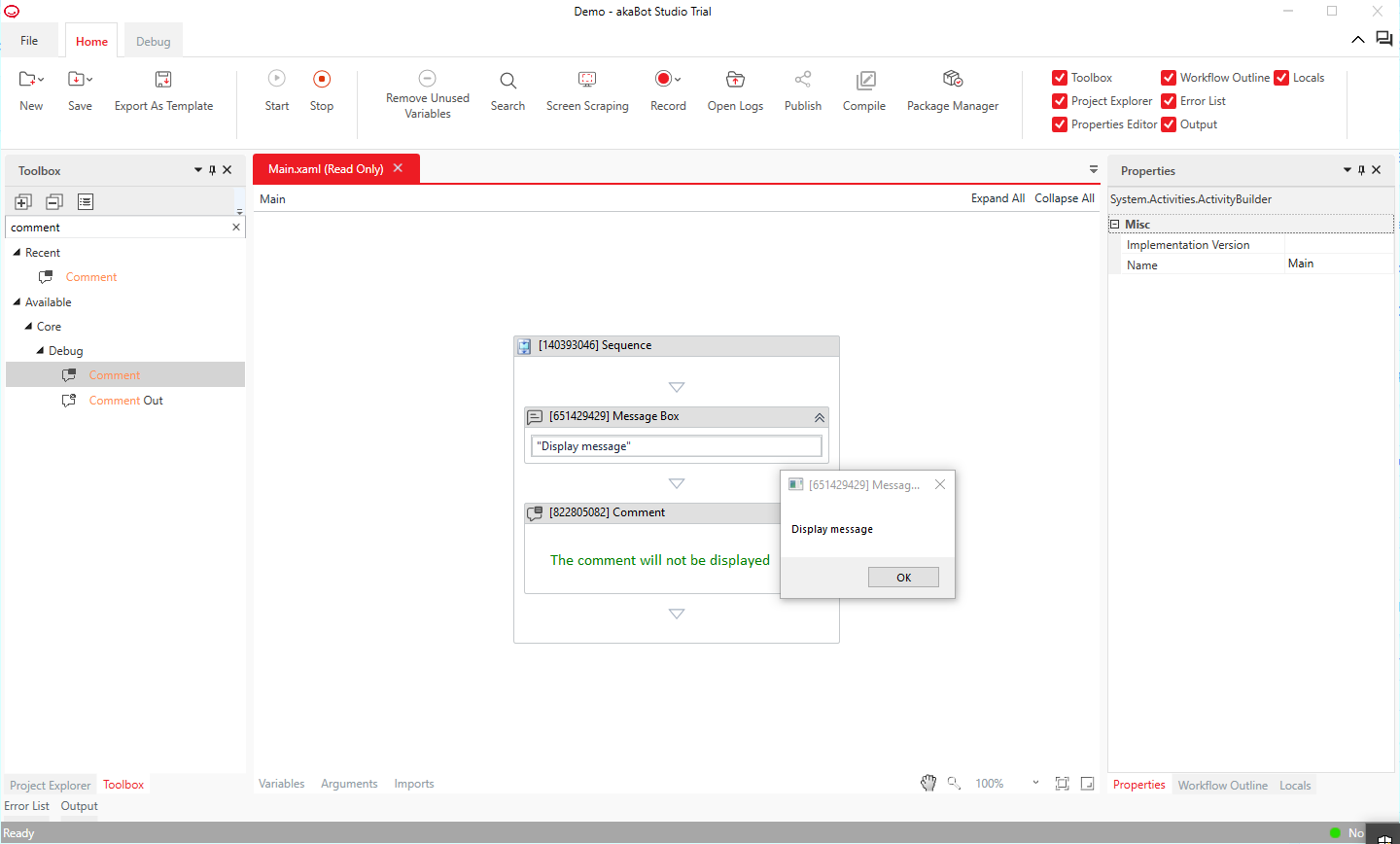

Finally, click "Home > Start" or press the F5 key to execute the workflow. You will see that the message box is displayed, but the comment is not displayed, and the workflow completes.
