TerminateWorkflow

Created by akaBot Support, Modified on Mon, 18 Nov, 2024 at 3:47 PM by akaBot Support

This section introduces the EndWorkflow activity.

TABLE OF CONTENTS

Activiy program name
Description
Properties
Usage

1. Activity program name

Stystem.Activities.Statements.TerminateWorkflow

2. Description

Studio version ~2.0.2.0

Quick access: Toolbox > Runtime > Terminate Workflow

Studio Version 2.0.3.0~

Quick access: Toolbox > System > Runtime > Terminate Workflow

This activity allows you to terminate a workflow at any point and throw an exception.

3. Properties

Property category	Property name	Input field	Description
Other	Public	Check box	The variables and arguments within the activity are written to the log file and pushed to the Center. (For details, refer to "Property Item 'Public'").
	Display name	Arbitrary String	The name of the activity as displayed in the designer panel.
	Reason	Value Input (String Type)	Enter the reason for terminating the workflow.
	Exception	Value Input (Exception Type)	Set the exception to be thrown when the workflow is terminated.

4. How to use

Let's try terminating a workflow created using the "Write Line" activity.

As a preparation step, ensure that the Agent log level is set to "VERBOSE."
In order to check the output of the "Reason" and "Exception" fields in the output panel or log, you must set the Agent log level to "VERBOSE" before executing the workflow. For more details about the Agent, refer to "How to Use Agent."

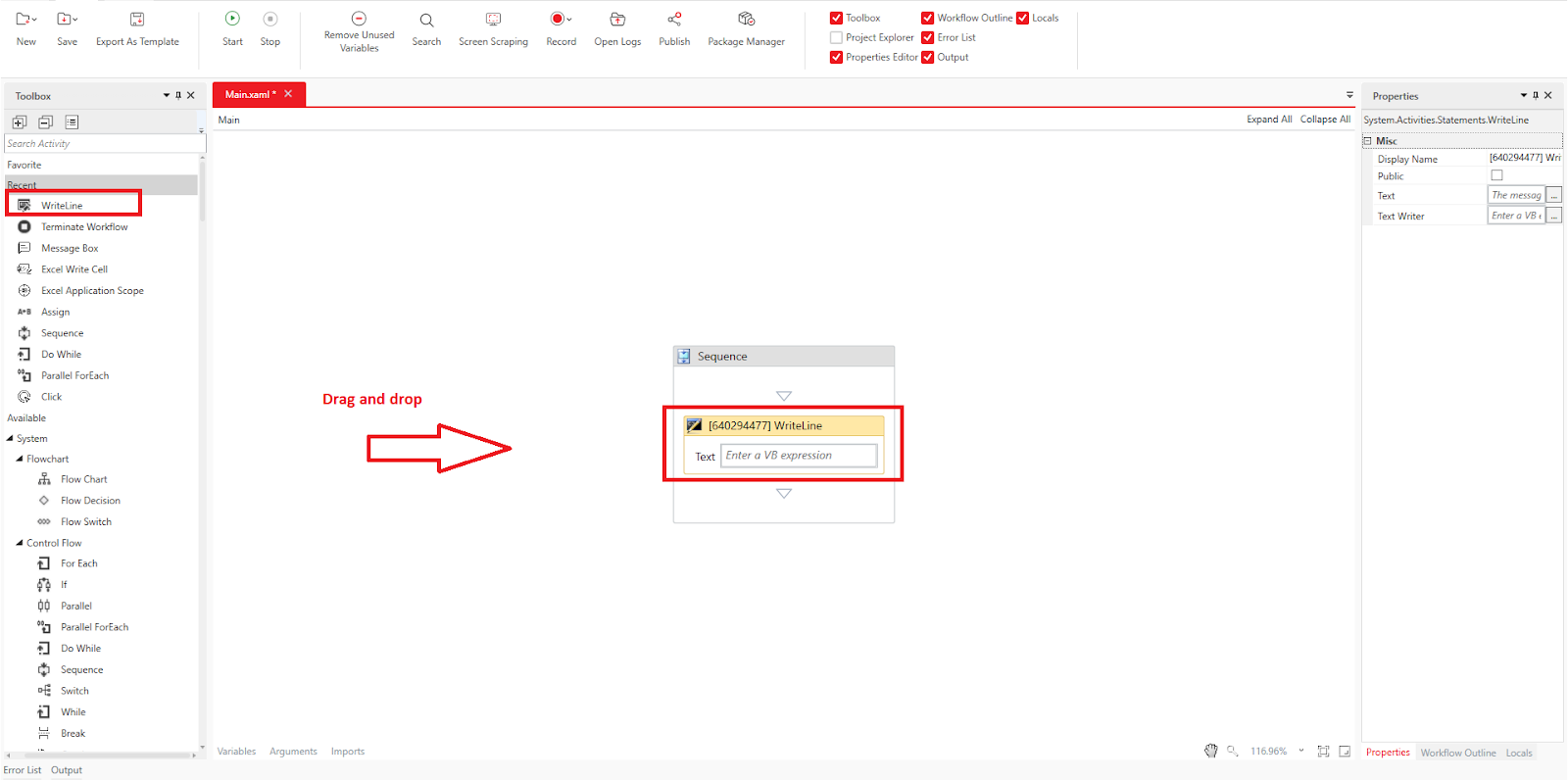

After confirming the Agent log level, first, drag and drop System > Original > Write Line into the design panel.

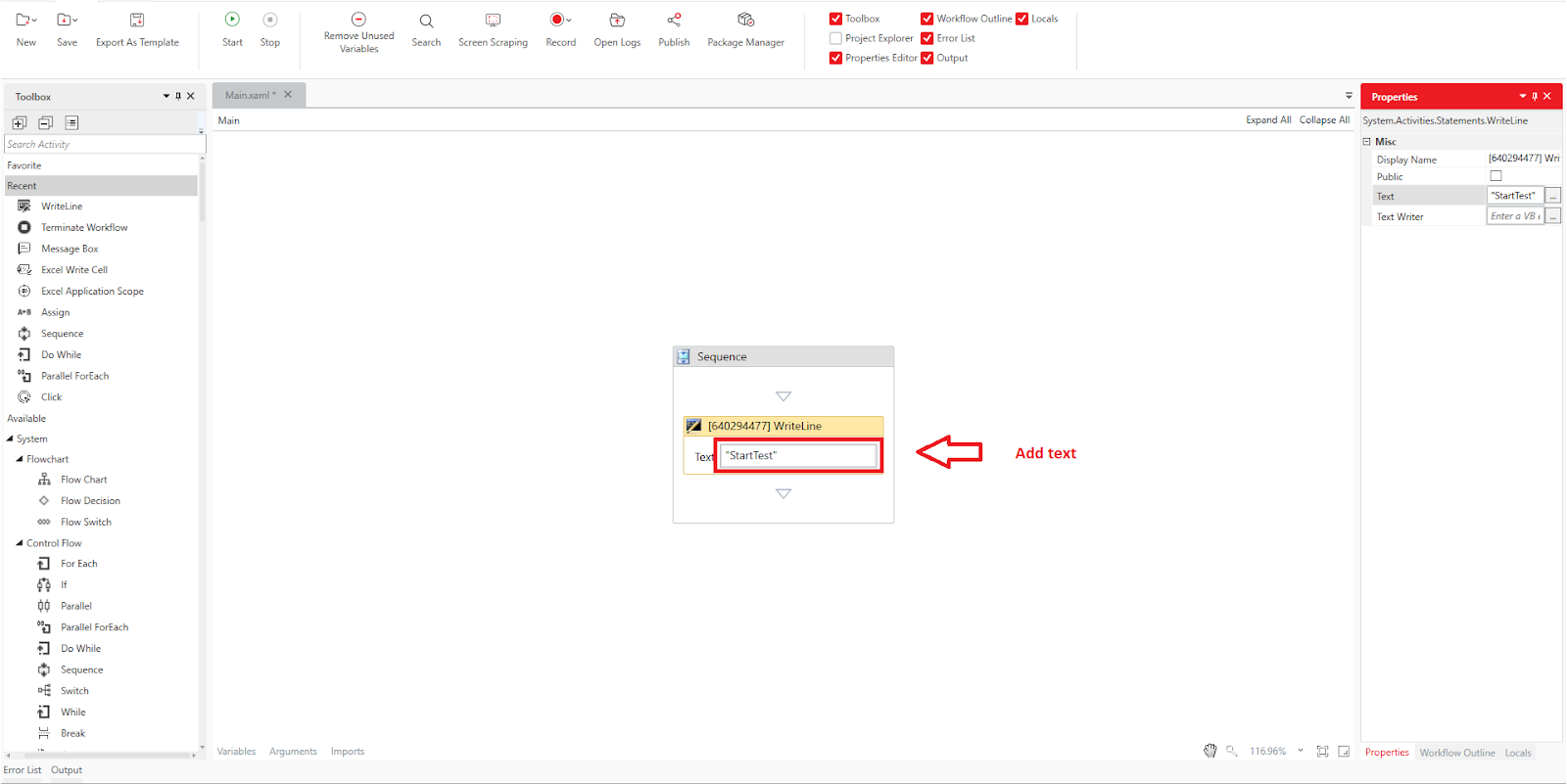

In the "Text" field of the properties under Other, input a string or String-type variable (in this example, we use the string "StartTest").

Next, drag and drop System > Runtime > Terminate Workflow into the design panel.

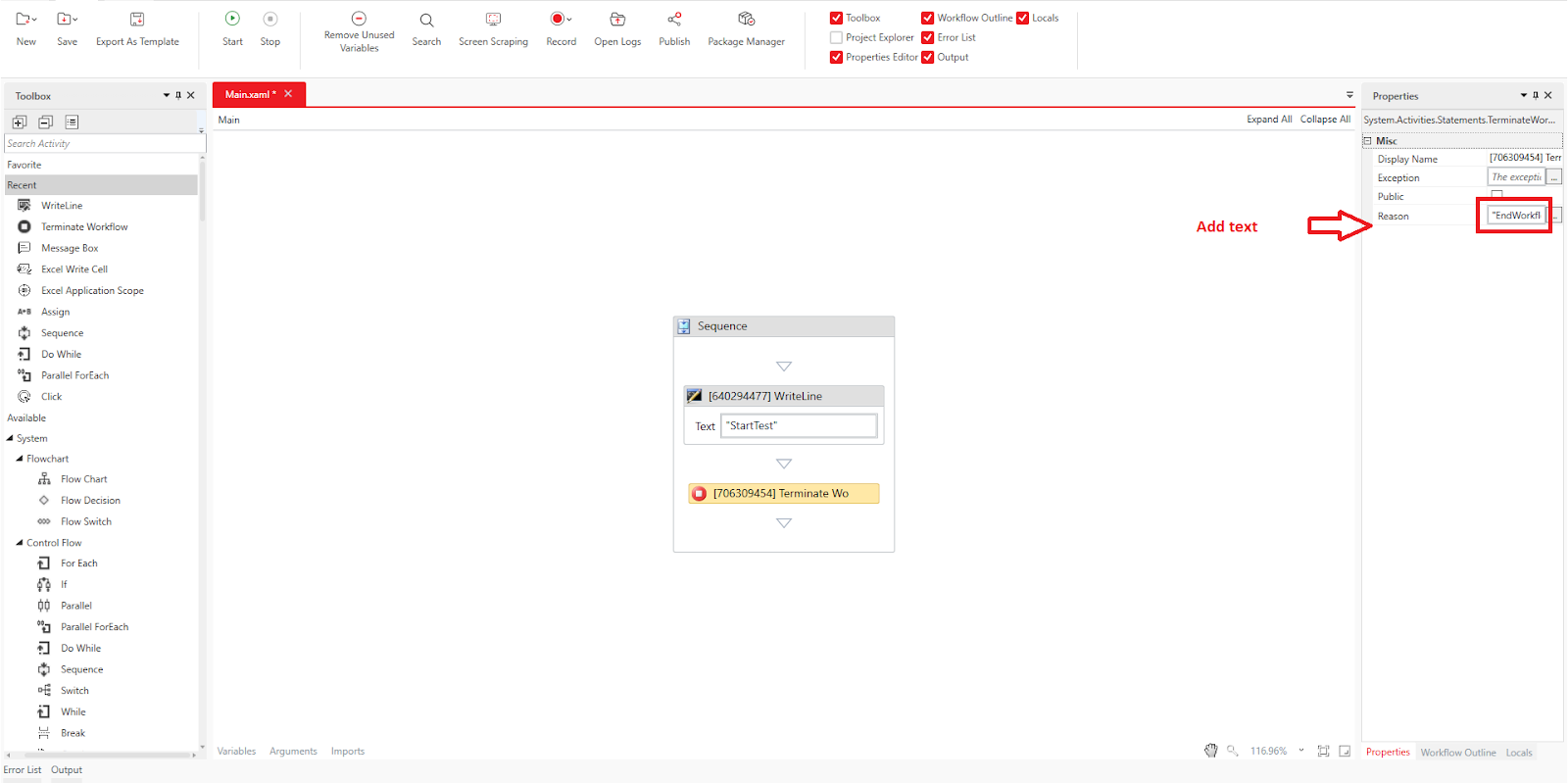

In the "Reason" field of the properties under Other, input a string or String-type variable (in this example, the string "EndWorkflow").

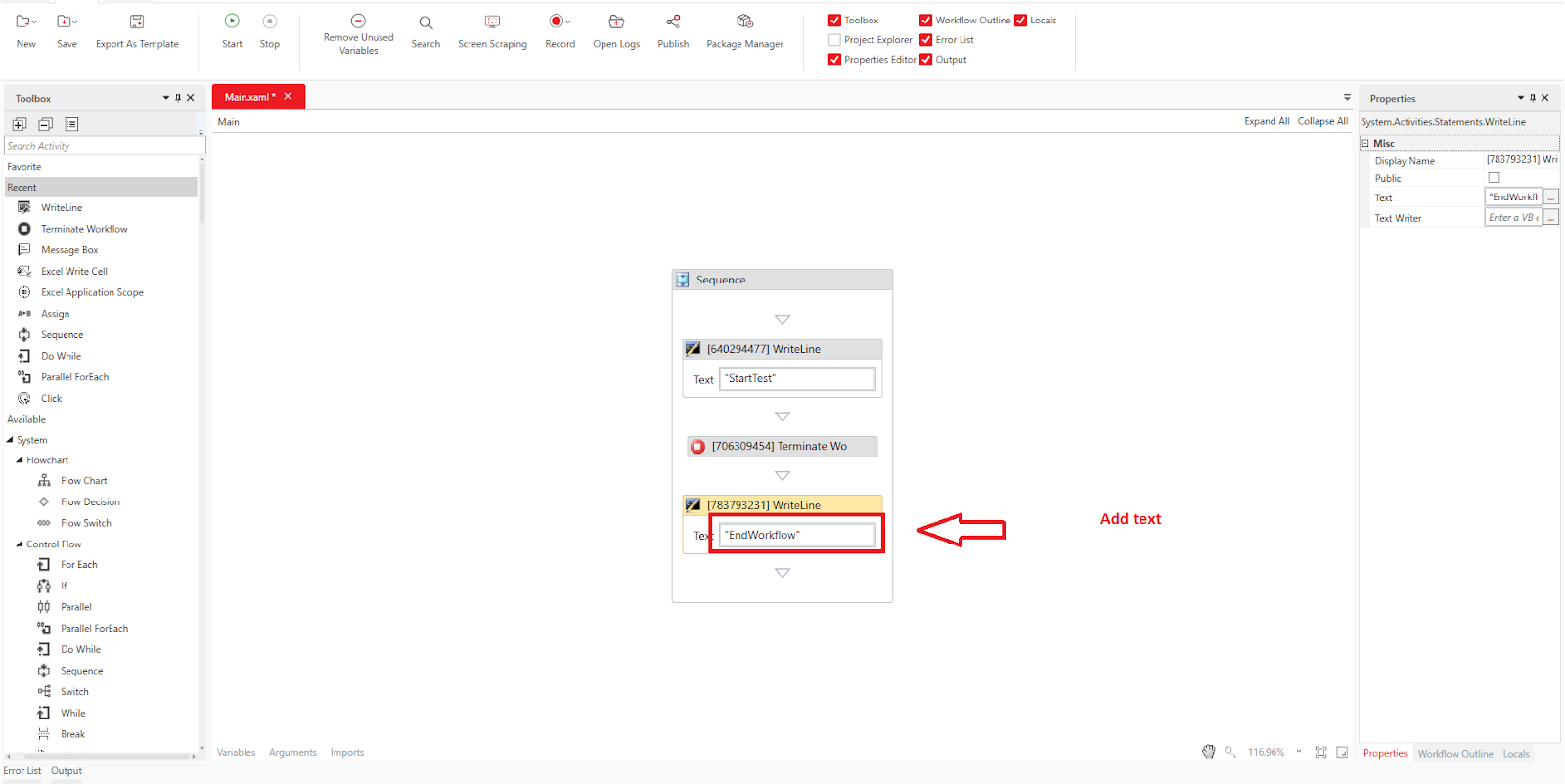

Then, drag and drop another System > Original > Write Line activity into the design panel. In the "Text" field of the properties under Other, input a string or String-type variable (in this example, "EndTest").

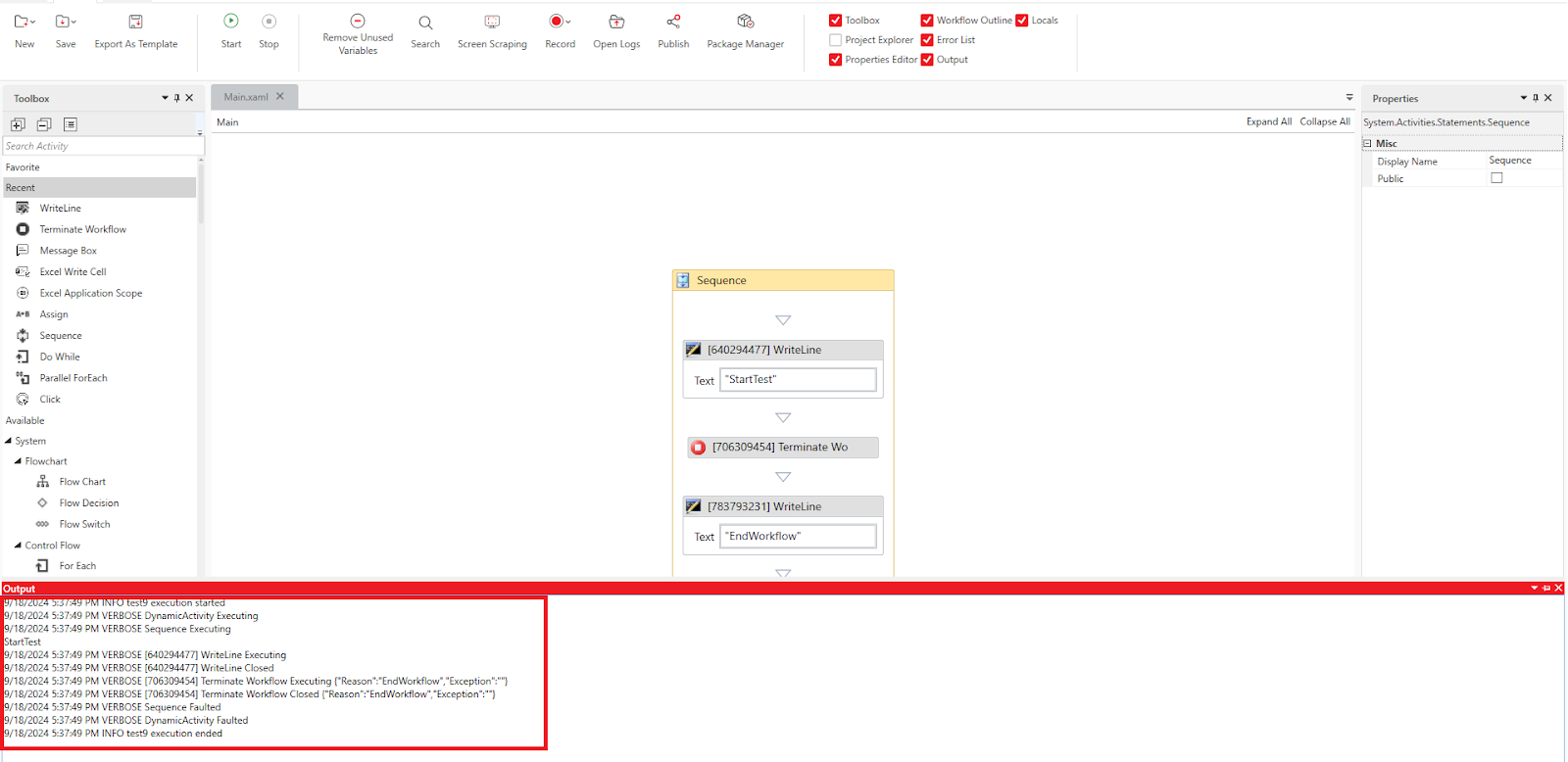

Click Home > Start or press F5 to execute the workflow and open the output panel.

Since the second Write Line activity is not executed, there will be no entry for "Test End". Also, confirm that in the "Reason" field, the value "EndTest" is displayed, which was set in the "Reason" property of the Terminate Workflow activity.
